Plastic canister, 10,0 liter

  1. Home
  2. Product overview
  3. Canisters
  4. Plastic canisters

  5. Plastic canisters, 10,0 l in natural, UN 3H1/X1.9/250/../D, food safe, mouth 51,0 mm

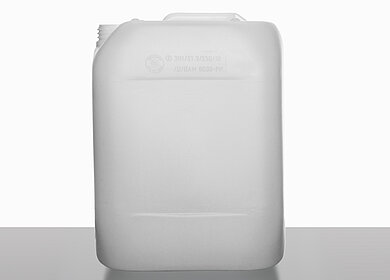

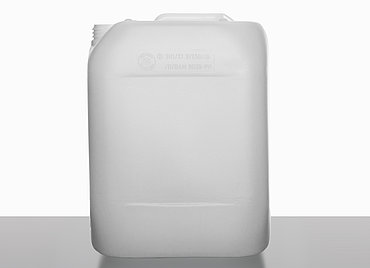

Canister of Plastic with nominal volume 10,0 liter

colour: natural


UN approval: UN 3H1/X1.9/250/../D

Matching lid available separately

item nr: 01-0010-51-01-10-050

contact
watchlist

Technical Details

item number 01-0010-51-01-10-050
title Plastic canister
nominal volume 10,0 l
overrun volume 10,4 l
colour natural
material HDPE
weight 460 g
UN approval UN 3H1/X1.9/250/../D
length outside top 232,0 mm
depth outside top 192,0 mm
height outside 309,0 mm

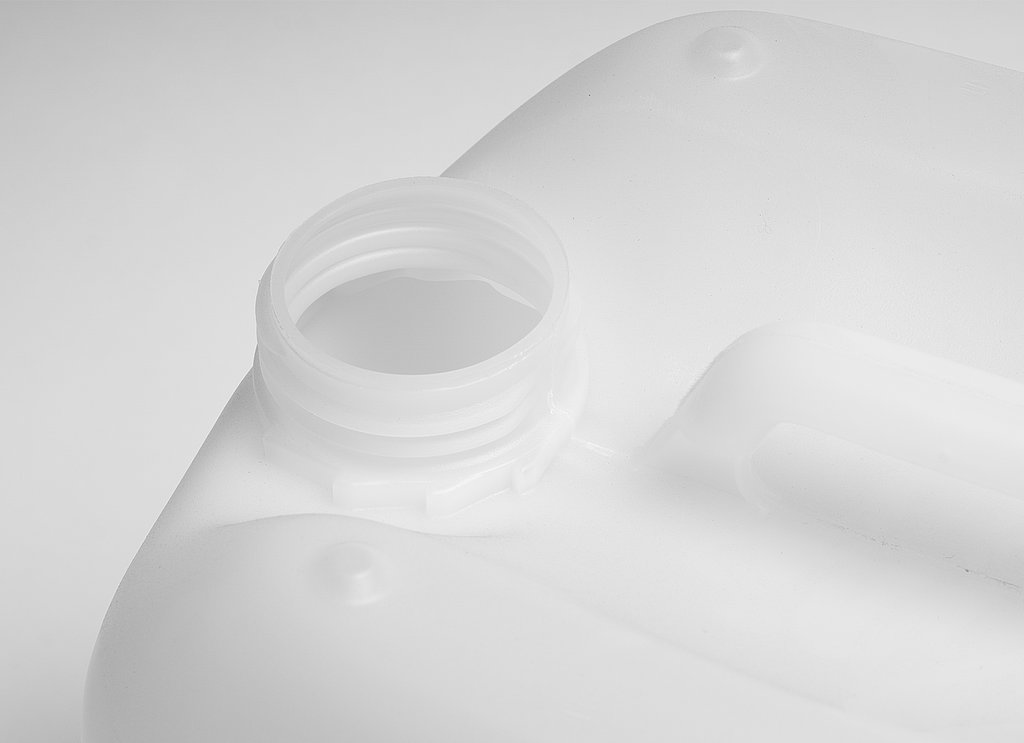

mouth 51,0 mm
filler hole 44,0 mm
outlet ø 51 = 44 mm clear width
stackable yes
food safe yes
authenticity grid screw joint
minimum order quantity 40 item.
packaging unit 20 item.
pallet unit 140 item.
pallet type euro-pallet

Accessories

  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    black
    material
    HDPE
    authenticity
    sprayed on seal ring
    item number
    11-51-0200-03-10-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    white
    material
    HDPE
    authenticity
    sprayed on seal ring in white
    seal
    PE-foam seal
    item number
    11-51-0200-02-10-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    red
    material
    HDPE
    authenticity
    sprayed on seal ring in red
    seal
    PE-foam seal
    item number
    11-51-0200-04-10-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    blue
    material
    HDPE
    authenticity
    sprayed on seal ring in blue
    seal
    PE-foam seal
    item number
    11-51-0200-05-10-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    yellow
    material
    HDPE
    authenticity
    sprayed on seal ring in yellow
    seal
    PE-foam seal
    item number
    11-51-0200-06-10-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    green
    material
    HDPE
    authenticity
    sprayed on seal ring in green
    seal
    PE-foam seal
    item number
    11-51-0200-08-10-050
    more details
  • Venting cap of HDPE ø 51,0 mm mouth
    title
    Venting cap
    mouth
    51,0 mm
    colour
    yellow
    material
    HDPE
    authenticity
    sprayed on seal ring in yellow
    item number
    11-51-0300-06-00-050
    more details
  • Venting cap of HDPE ø 51,0 mm mouth
    title
    Venting cap
    mouth
    51,0 mm
    colour
    black
    material
    HDPE
    authenticity
    authenticity ring
    seal
    foam rubber
    item number
    11-51-0300-03-00-050
    more details
  • Screw cap OV of HDPE ø 51,0 mm mouth
    title
    Screw cap OV
    mouth
    51,0 mm
    colour
    black
    material
    HDPE
    authenticity
    plugged yellow grid ring
    item number
    11-51-0200-03-20-050
    more details
  • canister pump of PP
    title
    canister pump
    mouth
    51,0 mm
    colour
    white
    material
    PP
    item number
    90-51-0450-02-00-019
    more details
  • canister key combination of PP
    title
    canister key combination
    mouth
    51,0 mm
    colour
    blue
    material
    PP
    item number
    90-51-0600-05-61-050
    more details
  • canister spout of HDPE
    title
    canister spout
    mouth
    51,0 mm
    colour
    natural
    material
    HDPE
    versions
    flexible spout
    seal
    PE seal
    item number
    90-50-0800-01-00-050
    more details
  • dosing pump of PP
    title
    dosing pump
    mouth
    51,0 mm
    colour
    black/white
    material
    PP
    seal
    PE-Dichtung
    item number
    90-51-0450-03-00-019
    more details
  • can tap of PP
    title
    can tap
    mouth
    51,0 mm
    colour
    natural/red
    material
    PP
    versions
    lockable
    seal
    PE foam insert
    item number
    90-51-0500-01-00-050
    more details
  • anti gurgle application of HDPE
    title
    anti gurgle application
    mouth
    51,0 mm
    colour
    natural
    material
    HDPE
    item number
    90-51-0700-01-00-057
    more details
  • sealing plug of HDPE
    title
    sealing plug
    mouth
    50,0 mm
    colour
    natural
    material
    HDPE
    item number
    90-50-0750-01-00-015
    more details
  • outlet tap reducer of PP
    title
    outlet tap reducer
    colour
    red
    material
    PP
    item number
    90-51-0850-04-00-019
    more details
  • Protective cap of PP
    title
    Protective cap
    mouth
    51,0 mm
    colour
    black
    material
    PP
    versions
    child safe
    item number
    90-51-0550-03-00-050
    more details
  • Drum pump of plastic
    title
    Drum pump
    mouth
    50,0 mm
    colour
    golden
    material
    plastic
    versions
    includes telescopic tube for the universal use on all barrel sizes
    item number
    94-0850-90-07-00-076
    more details
