Plastic canister, 10,0 liter

  1. Home
  2. Product overview
  3. Canisters
  4. Plastic canisters

  5. Plastic canisters, 10,0 l in natural, UN 3H1/Y1.9/180, food safe, mouth 51,0 mm

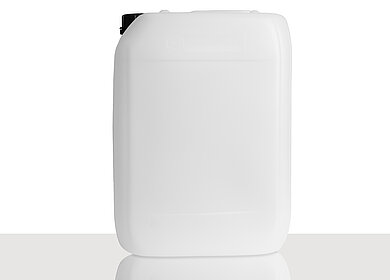

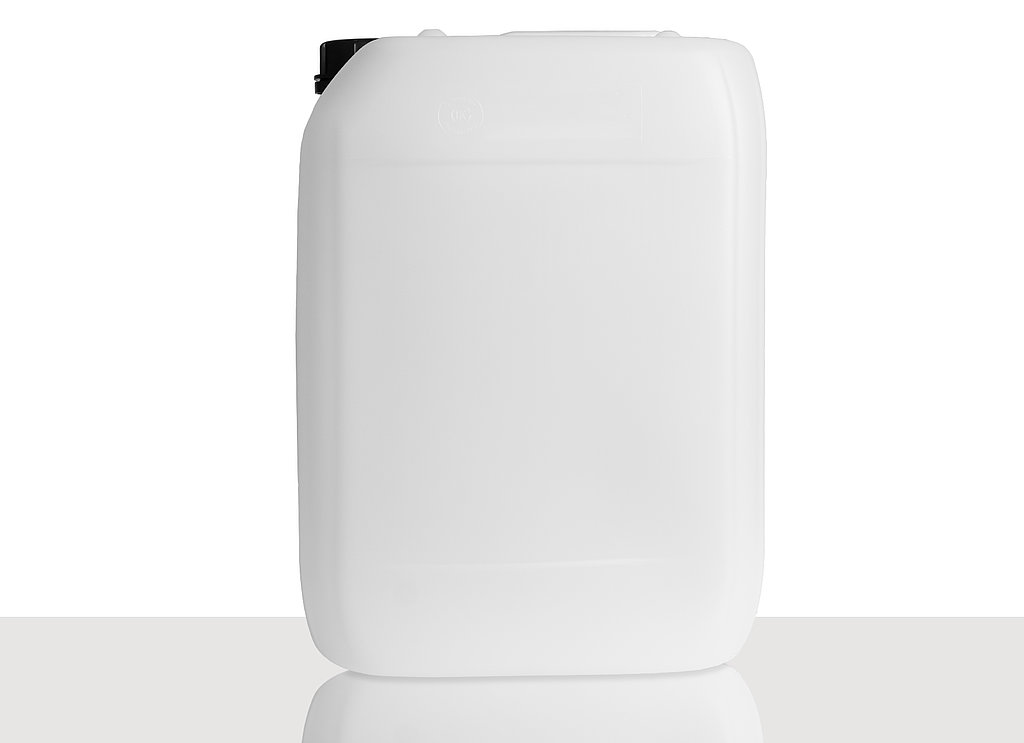

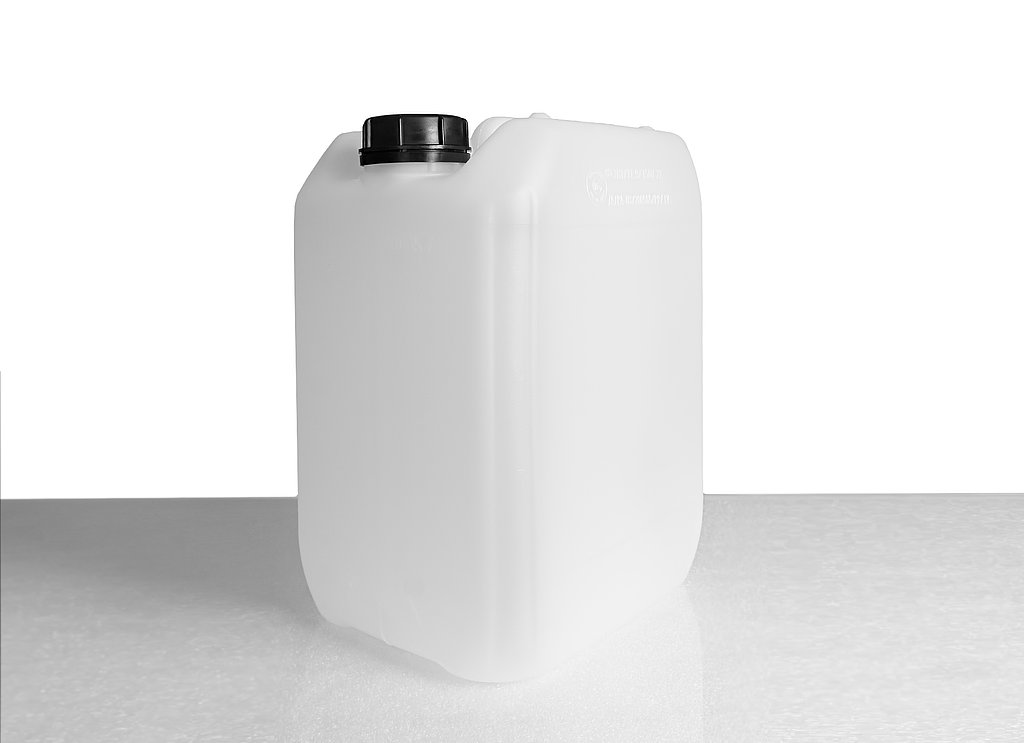

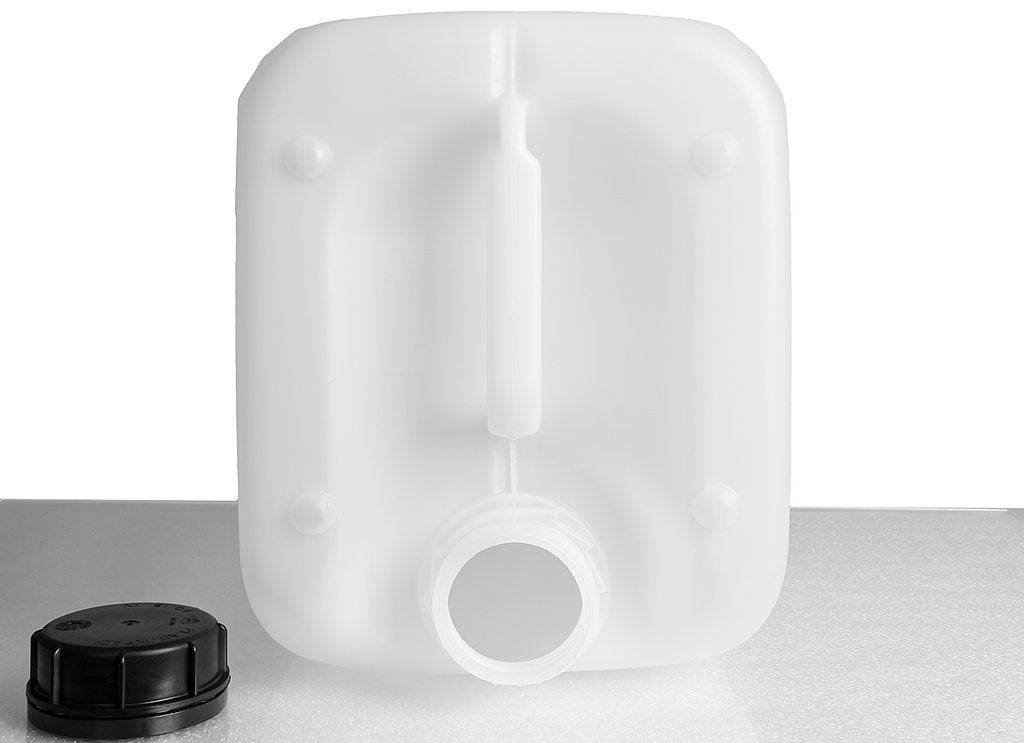

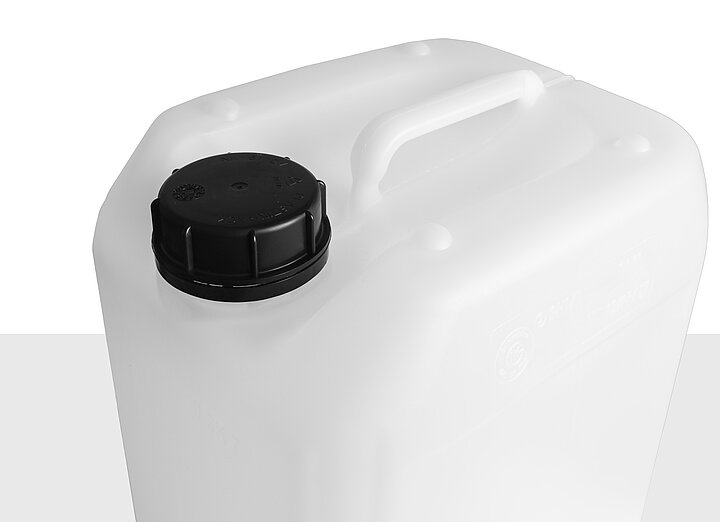

Canister of Plastic with nominal volume 10,0 liter

colour : natural


UN approval : UN 3H1/Y1.9/180

Matching lid available separately

item nr: 01-0010-51-01-43-050

contact
watchlist

Technical Details

item number 01-0010-51-01-43-050
title Plastic canister
nominal volume 10,0 l
overrun volume 10,8 l
colour natural
material HDPE
weight 380 g
UN approval UN 3H1/Y1.9/180
length outside top 234,0 mm
length outside bottom 234,0 mm
depth outside top 195,0 mm
depth outside bottom 195,0 mm
height outside 309,0 mm
mouth 51,0 mm
filler hole 44,0 mm
thread type OV 51
stackable yes
scale yes
food safe yes
authenticity via closure
versions subpackaged in PE-sacks by 20 pieces
items in stock yes
minimum order quantity 20 item.
packaging unit 20 item.
pallet unit 80 item.
pallet type euro-pallet
pallet height 1,36 m
weight per pallet 57,00 kg

Accessories

  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    black
    material
    HDPE
    authenticity
    sprayed on seal ring
    item number
    11-51-0200-03-10-050
    more details
  • Screw cap OV of HDPE ø 51,0 mm mouth
    title
    Screw cap OV
    mouth
    51,0 mm
    colour
    black
    material
    HDPE
    authenticity
    plugged yellow grid ring
    item number
    11-51-0200-03-20-050
    more details
  • Venting cap of HDPE ø 51,0 mm mouth
    title
    Venting cap
    mouth
    51,0 mm
    colour
    black
    material
    HDPE
    authenticity
    authenticity ring
    seal
    foam rubber
    item number
    11-51-0300-03-00-050
    more details
  • Protective cap of PP
    title
    Protective cap
    mouth
    51,0 mm
    colour
    black
    material
    PP
    versions
    child safe
    item number
    90-51-0550-03-00-050
    more details
  • canister pump of PP
    title
    canister pump
    mouth
    51,0 mm
    colour
    white
    material
    PP
    item number
    90-51-0450-02-00-019
    more details
  • canister key combination of PP
    title
    canister key combination
    mouth
    51,0 mm
    colour
    blue
    material
    PP
    item number
    90-51-0600-05-61-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    white
    material
    HDPE
    authenticity
    sprayed on seal ring in white
    seal
    PE-foam seal
    item number
    11-51-0200-02-10-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    red
    material
    HDPE
    authenticity
    sprayed on seal ring in red
    seal
    PE-foam seal
    item number
    11-51-0200-04-10-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    blue
    material
    HDPE
    authenticity
    sprayed on seal ring in blue
    seal
    PE-foam seal
    item number
    11-51-0200-05-10-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    yellow
    material
    HDPE
    authenticity
    sprayed on seal ring in yellow
    seal
    PE-foam seal
    item number
    11-51-0200-06-10-050
    more details
  • Grid screw joint of HDPE ø 51,0 mm mouth
    title
    Grid screw joint
    mouth
    51,0 mm
    colour
    green
    material
    HDPE
    authenticity
    sprayed on seal ring in green
    seal
    PE-foam seal
    item number
    11-51-0200-08-10-050
    more details
  • Venting cap of HDPE ø 51,0 mm mouth
    title
    Venting cap
    mouth
    51,0 mm
    colour
    yellow
    material
    HDPE
    authenticity
    sprayed on seal ring in yellow
    item number
    11-51-0300-06-00-050
    more details
  • dosing pump of PP
    title
    dosing pump
    mouth
    51,0 mm
    colour
    black/white
    material
    PP
    seal
    PE-Dichtung
    item number
    90-51-0450-03-00-019
    more details
  • can tap of PP
    title
    can tap
    mouth
    51,0 mm
    colour
    natural/red
    material
    PP
    versions
    lockable
    seal
    PE foam insert
    item number
    90-51-0500-01-00-050
    more details
  • anti gurgle application of HDPE
    title
    anti gurgle application
    mouth
    51,0 mm
    colour
    natural
    material
    HDPE
    item number
    90-51-0700-01-00-057
    more details
  • outlet tap reducer of PP
    title
    outlet tap reducer
    colour
    red
    material
    PP
    item number
    90-51-0850-04-00-019
    more details
