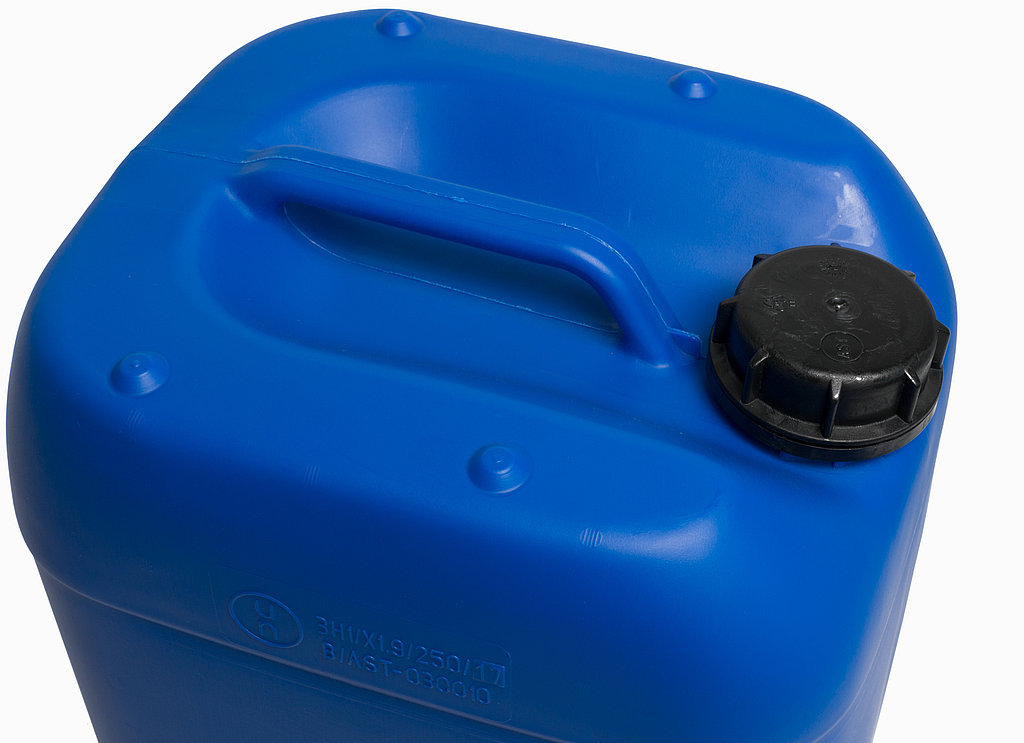

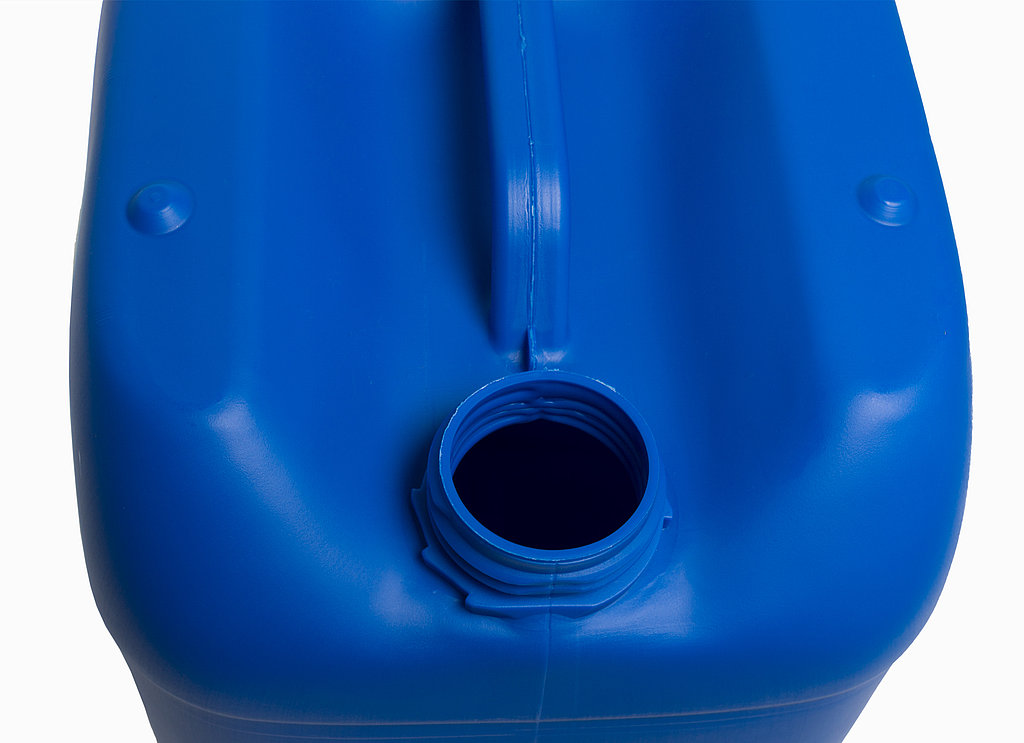

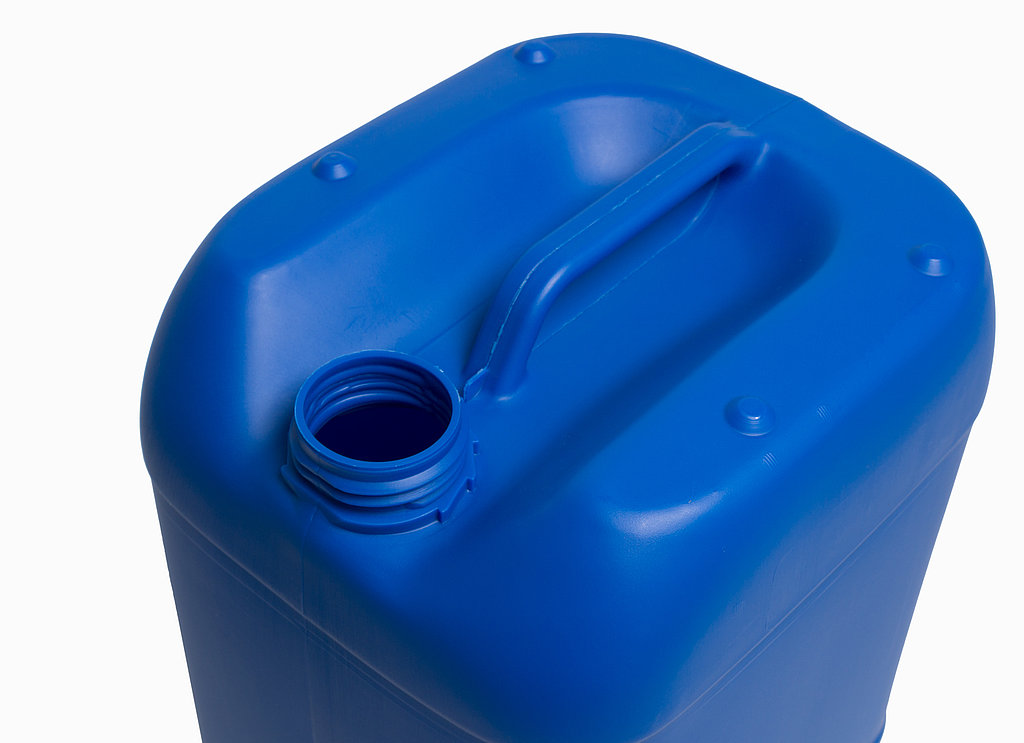

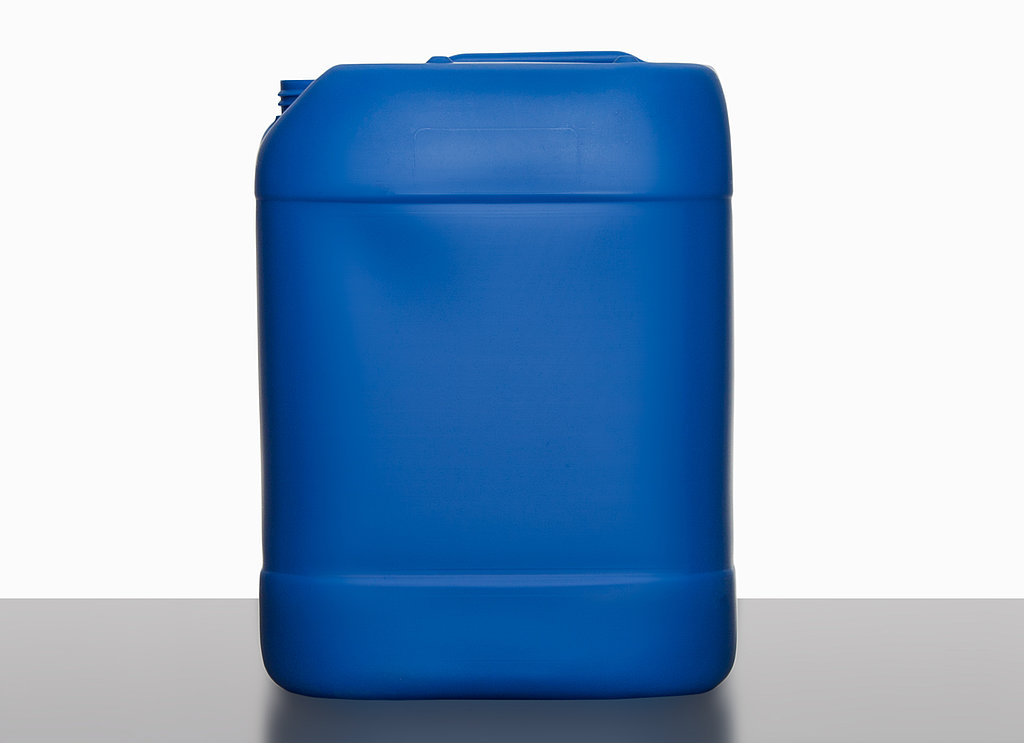

Plastic canister, 20,0 liter
Technical Details
| item number | 01-0020-61-05-10-049 |
| title | Plastic canister |
| nominal volume | 20,0 l |
| overrun volume | 22,2 l |
| colour | blue |
| material | HDPE |
| weight | 900 g |
| UN approval | UN 3H1/X1.9/250 |
| length outside top | 294,0 mm |
| depth outside top | 258,0 mm |
| height outside | 385,0 mm |
| mouth | 61,0 mm |
| filler hole | 49,0 mm |
| stackable | yes |
| food safe | yes |
| authenticity | grid screw joint |
| minimum order quantity | 36 item. |
| packaging unit | 12 item. |
| pallet unit | 36 item. |
| pallet type | euro-pallet |
Accessories
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- black
- material
- HDPE
- authenticity
- sprayed on seal ring in black
- seal
- PE seal
- item number
- 11-61-0200-03-00-049
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- red
- material
- HDPE
- authenticity
- sprayed on seal ring in red
- seal
- PE seal
- item number
- 11-61-0200-04-00-049
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- blue
- material
- HDPE
- authenticity
- sprayed on seal ring in blue
- seal
- PE seal
- item number
- 11-61-0200-05-00-049
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- yellow
- material
- HDPE
- authenticity
- sprayed on seal ring in yellow
- seal
- PE seal
- item number
- 11-61-0200-06-00-049
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- green
- material
- HDPE
- authenticity
- sprayed on seal ring in green
- seal
- PE seal
- item number
- 11-61-0200-08-00-049
-
![Venting cap of HDPE ø 61,0 mm mouth]()
![]()
- title
- Venting cap
- mouth
- 61,0 mm
- colour
- natural
- material
- HDPE
- authenticity
- sprayed on seal ring in natural colour
- seal
- PE seal
- item number
- 11-61-0300-01-00-049
-
![canister key combination of PP]()
![]()
- title
- canister key combination
- mouth
- 51,0 mm
- colour
- blue
- material
- PP
- item number
- 90-51-0600-05-61-050
-
![pouring spout of PP]()
![]()
- title
- pouring spout
- mouth
- 61,0 mm
- colour
- natural
- material
- PP
- versions
- screw connection
- seal
- PE foam insert
- item number
- 90-60-0800-01-00-050
-
![can tap of PP]()
![]()
- title
- can tap
- mouth
- 61,0 mm
- colour
- natural/red
- material
- PP
- versions
- lockable
- seal
- PE foam insert
- item number
- 90-61-0500-01-00-050
-
![anti gurgle application of HDPE]()
![]()
- title
- anti gurgle application
- mouth
- 61,0 mm
- colour
- natural
- material
- HDPE
- item number
- 90-61-0700-01-00-057
-
![sealing plug of HDPE]()
![]()
- title
- sealing plug
- mouth
- 60,0 mm
- colour
- natural
- material
- HDPE
- item number
- 90-60-0750-01-00-057
-
![outlet tap reducer of PP]()
![]()
- title
- outlet tap reducer
- colour
- red
- material
- PP
- item number
- 90-51-0850-04-00-019
-
![Dosing pump of PP]()
![]()
- title
- Dosing pump
- mouth
- 61,0 mm
- colour
- white (photo: white/black)
- material
- PP
- item number
- 90-61-0450-02-00-019
-
![Adapter for Canister 61 mm of PP]()
![]()
- title
- Adapter for Canister 61 mm
- mouth
- 61,0 mm
- colour
- yellow
- material
- PP
- versions
- as connection for 2" faucets with ø 61 mm canister openings
- item number
- 90-0700-50-06-61-076
-
![Spout of PP]()
![]()
- title
- Spout
- mouth
- 61,0 mm
- colour
- yellow
- material
- PP
- seal
- PE foam seal
- item number
- 90-61-0800-06-00-050
