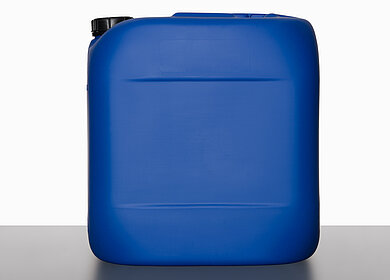

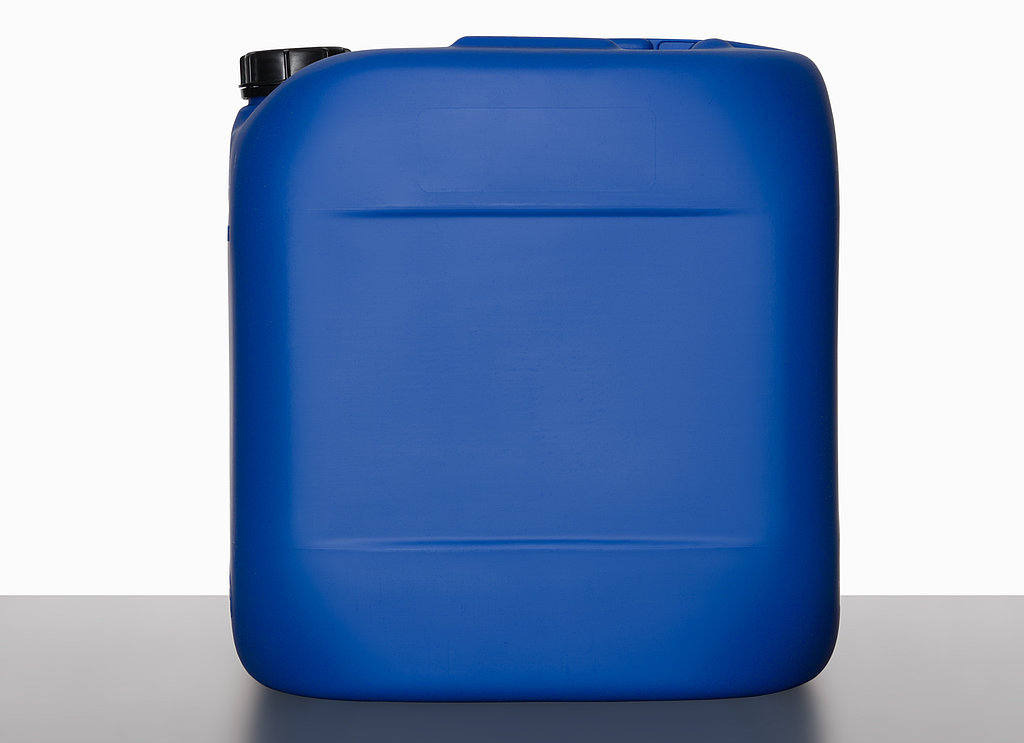

Plastic canister, 30,0 liter
Technical Details
| item number | 01-0030-61-05-11-050 |
| title | Plastic canister |
| nominal volume | 30,0 l |
| overrun volume | 34,0 l |
| colour | blue |
| material | HDPE |
| weight | 1.050 g |
| UN approval | UN 3H1/Y1.9/200 |
| length outside top | 380,0 mm |
| depth outside top | 280,0 mm |
| height outside | 400,0 mm |
| mouth | 61,0 mm |
| filler hole | 49,0 mm |
| stackable | yes |
| food safe | yes |
| authenticity | grid screw joint |
| minimum order quantity | 54 item. |
| pallet unit | 27 item. |
| pallet type | euro-pallet |
Accessories
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- black
- material
- HDPE
- authenticity
- sprayed on seal ring in black
- seal
- PE seal
- item number
- 11-61-0200-03-10-050
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- red
- material
- HDPE
- authenticity
- sprayed on seal ring in red
- seal
- PE-foam seal
- item number
- 11-61-0200-04-10-050
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- blue
- material
- HDPE
- authenticity
- sprayed on seal ring in blue
- seal
- PE-foam seal
- item number
- 11-61-0200-05-10-050
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- yellow
- material
- HDPE
- authenticity
- sprayed on seal ring in yellow
- seal
- PE seal
- item number
- 11-61-0200-06-10-050
-
![Grid screw joint of HDPE ø 61,0 mm mouth]()
![]()
- title
- Grid screw joint
- mouth
- 61,0 mm
- colour
- green
- material
- HDPE
- authenticity
- sprayed on seal ring in green
- seal
- PE-foam seal
- item number
- 11-61-0200-08-10-050
-
![Venting cap of HDPE ø 61,0 mm mouth]()
![]()
- title
- Venting cap
- mouth
- 61,0 mm
- colour
- yellow
- material
- HDPE
- authenticity
- sprayed on seal ring in yellow
- seal
- PE-Santoprene
- item number
- 11-61-0300-06-00-050
-
![Venting cap of HDPE ø 61,0 mm mouth]()
![]()
- title
- Venting cap
- mouth
- 61,0 mm
- colour
- yellow
- material
- HDPE
- authenticity
- sprayed on seal ring in yellow
- seal
- PE-Santoprene
- item number
- 11-61-0300-06-10-050
-
![pouring spout of PP]()
![]()
- title
- pouring spout
- mouth
- 61,0 mm
- colour
- natural
- material
- PP
- versions
- screw connection
- seal
- PE foam insert
- item number
- 90-60-0800-01-00-050
-
![can tap of PP]()
![]()
- title
- can tap
- mouth
- 61,0 mm
- colour
- natural/red
- material
- PP
- versions
- lockable
- seal
- PE foam insert
- item number
- 90-61-0500-01-00-050
-
![anti gurgle application of HDPE]()
![]()
- title
- anti gurgle application
- mouth
- 61,0 mm
- colour
- natural
- material
- HDPE
- item number
- 90-61-0700-01-00-057
-
![sealing plug of HDPE]()
![]()
- title
- sealing plug
- mouth
- 60,0 mm
- colour
- natural
- material
- HDPE
- item number
- 90-60-0750-01-00-057
-
![outlet tap reducer of PP]()
![]()
- title
- outlet tap reducer
- colour
- red
- material
- PP
- item number
- 90-51-0850-04-00-019
-
![Dosing pump of PP]()
![]()
- title
- Dosing pump
- mouth
- 61,0 mm
- colour
- white (photo: white/black)
- material
- PP
- item number
- 90-61-0450-02-00-019
-
![Adapter for Canister 61 mm of PP]()
![]()
- title
- Adapter for Canister 61 mm
- mouth
- 61,0 mm
- colour
- yellow
- material
- PP
- versions
- as connection for 2" faucets with ø 61 mm canister openings
- item number
- 90-0700-50-06-61-076
-
![Spout of PP]()
![]()
- title
- Spout
- mouth
- 61,0 mm
- colour
- yellow
- material
- PP
- seal
- PE foam seal
- item number
- 90-61-0800-06-00-050
