Open head drum, 120,0 liter

  1. Home
  2. Product overview
  3. Drums
  4. Plastic open head drums
  5. Open head drum 120,0 l

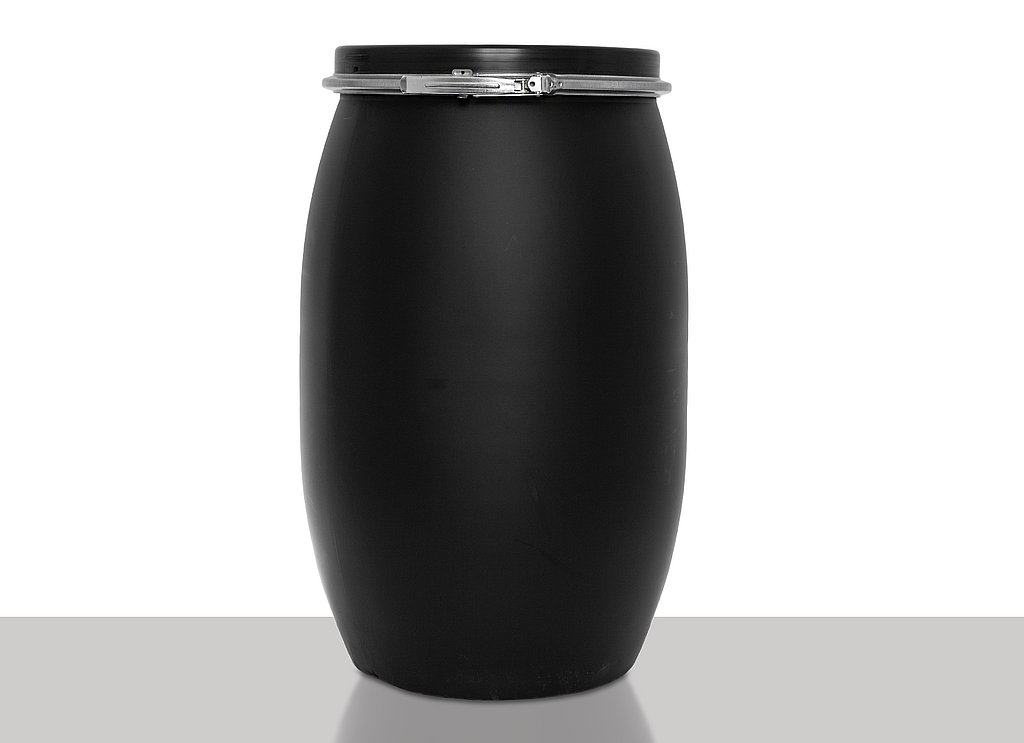

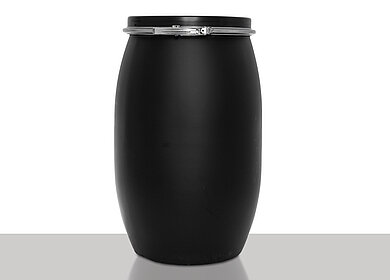

Drum of Plastic with nominal volume 120,0 liter

colour : black


UN approval : UN 1H2/X200/S

item nr: 06-0120-00-03-10-049

contact
watchlist

Technical Details

item number 06-0120-00-03-10-049
title Open head drum
nominal volume 120,0 l
overrun volume 126,0 l
colour black
material HDPE
weight 5.220 g
UN approval UN 1H2/X200/S
height outside 800,0 mm
Diameter top outside 503,0 mm
mouth 393,0 mm
filler hole 390,0 mm
stackable yes
food safe yes

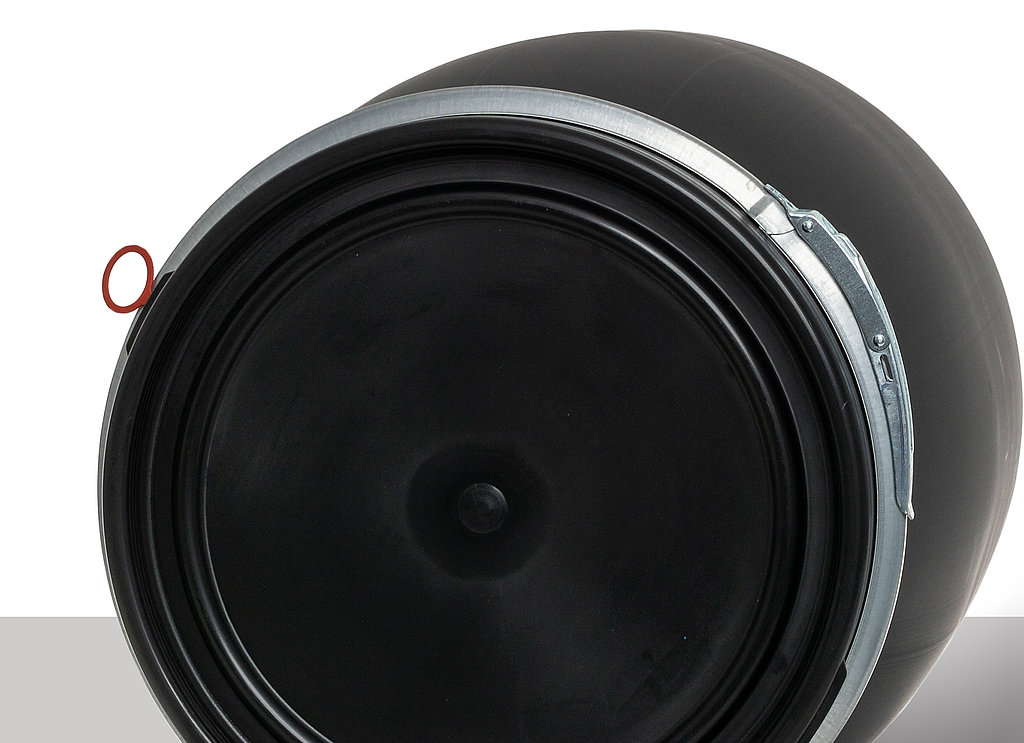

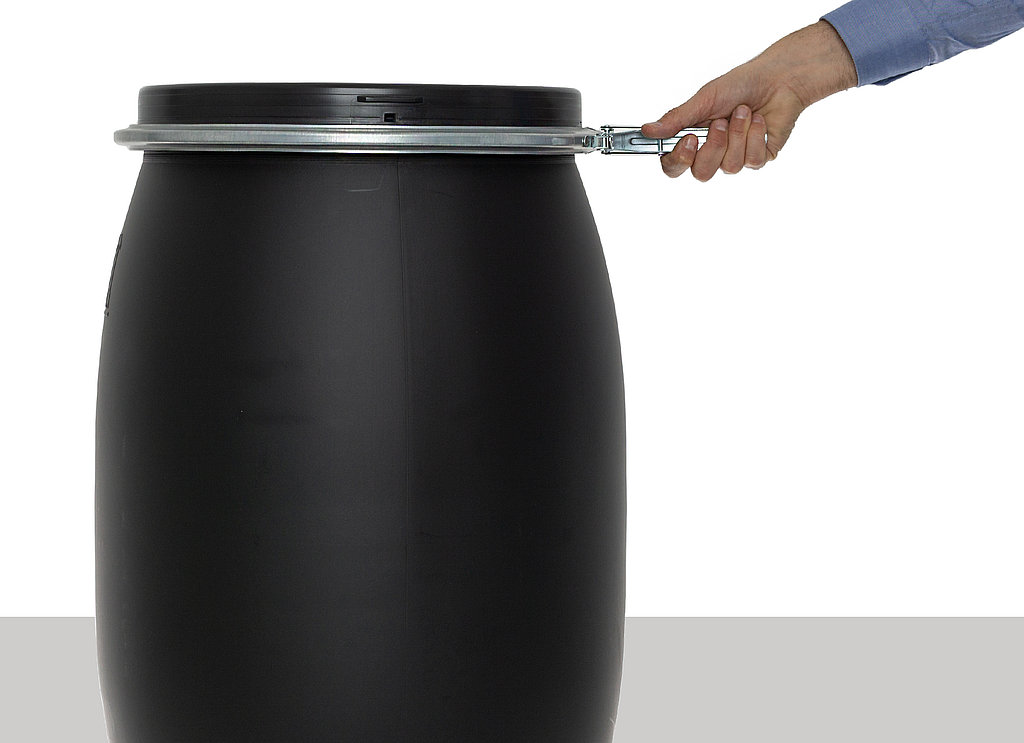

lid Lid with 9mm foam rubber seal and clamping ring
lid colour black
seal EPDM insert
authenticity drum seal or sealed splint
versions weight of drum body: 4.000 g, closure and clamping ring: ca. 1,550 g
pallet type euro-pallet
other Standard dimensions as of DIN 12714 NC and VCI-manual. Hundred percent sealing between lid and body via EPDM insert lid seal with high elasticity and good recovery. Easy handling of closure. Protected clamping rings prevent climbing of containers during transport. Handling via customary drum gripper possible. Top closed or with spout closure.

Accessories

  • Closure help of steel
    title
    Closure help
    colour
    galvanized
    material
    steel
    UN approval
    none
    item number
    94-0150-70-16-00-116
    more details
  • PE-Inliner of LD-PE
    title
    PE-Inliner
    colour
    transparent
    material
    LD-PE
    mouth
    480,0 mm
    UN approval
    none
    item number
    41-60-0480-1200-082
    more details
  • Safety quick fastener of PP
    title
    Safety quick fastener
    colour
    light blue
    material
    PP
    UN approval
    none
    item number
    94-0050-41-05-90-094
    more details
  • drum seal of PE
    title
    drum seal
    colour
    red
    material
    PE
    UN approval
    none
    item number
    94-0650-90-04-00-077
    more details
  • splint of galvanized sheet steel
    title
    splint
    colour
    silver
    material
    galvanized sheet steel
    UN approval
    none
    item number
    94-0650-90-16-00-070
    more details
  • Measuring scoop of PP
    title
    Measuring scoop
    nominal volume
    250 ml
    colour
    white
    material
    PP
    UN approval
    none
    item number
    93-0250-40-02-00-058
    more details
  • Measuring scoop of PP
    title
    Measuring scoop
    nominal volume
    500 ml
    colour
    white
    material
    PP
    UN approval
    none
    item number
    93-0500-40-02-00-058
    more details
