Technical Details
| item number | 06-0220-80-05-10-020 |

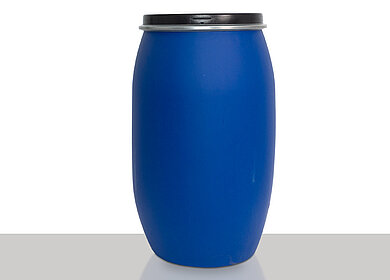

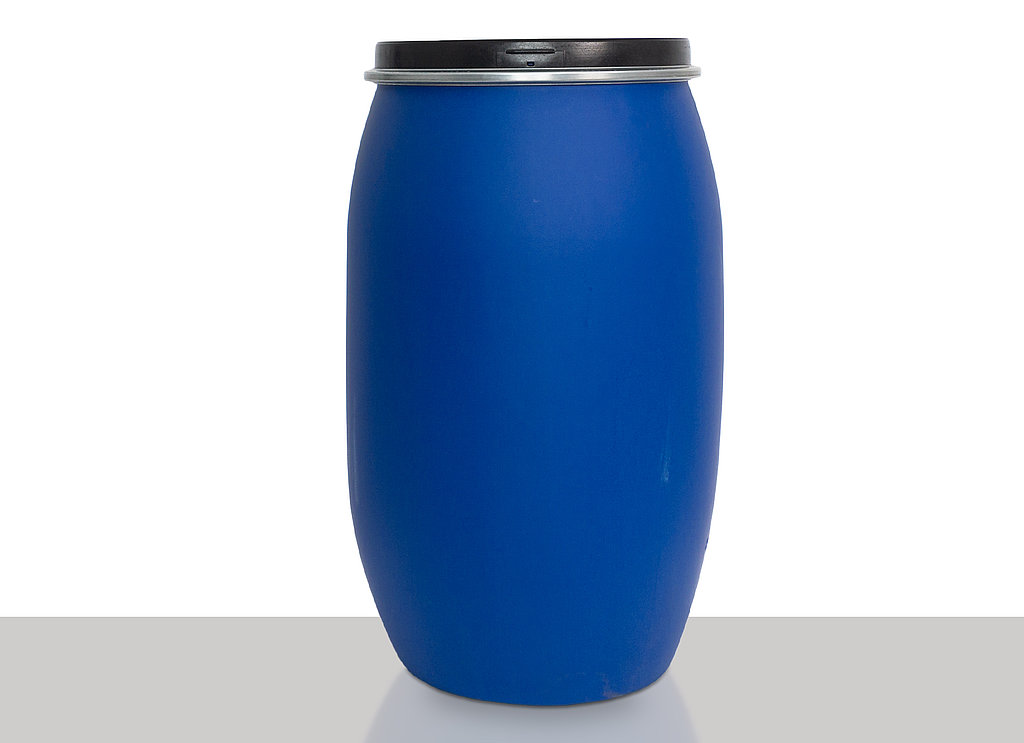

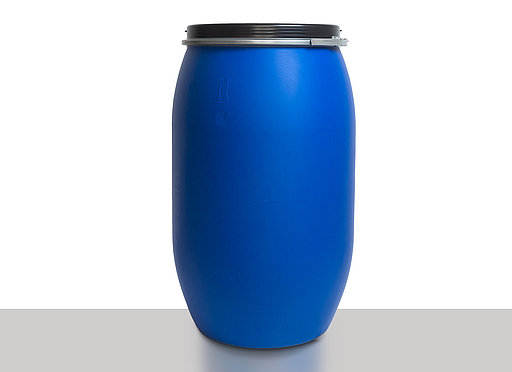

| title | Open head drum |
| nominal volume | 220,0 l |
| overrun volume | 228,0 l |
| colour | blue |
| material | HDPE |
| weight | 9.500 g |
| UN approval | UN 1H2/X320/S (solids) |
| height outside | 978,0 mm |
| Diameter top outside | 590,0 mm |
| mouth | 500,0 mm |
| filler hole | 474,0 mm |
| stackable | yes |

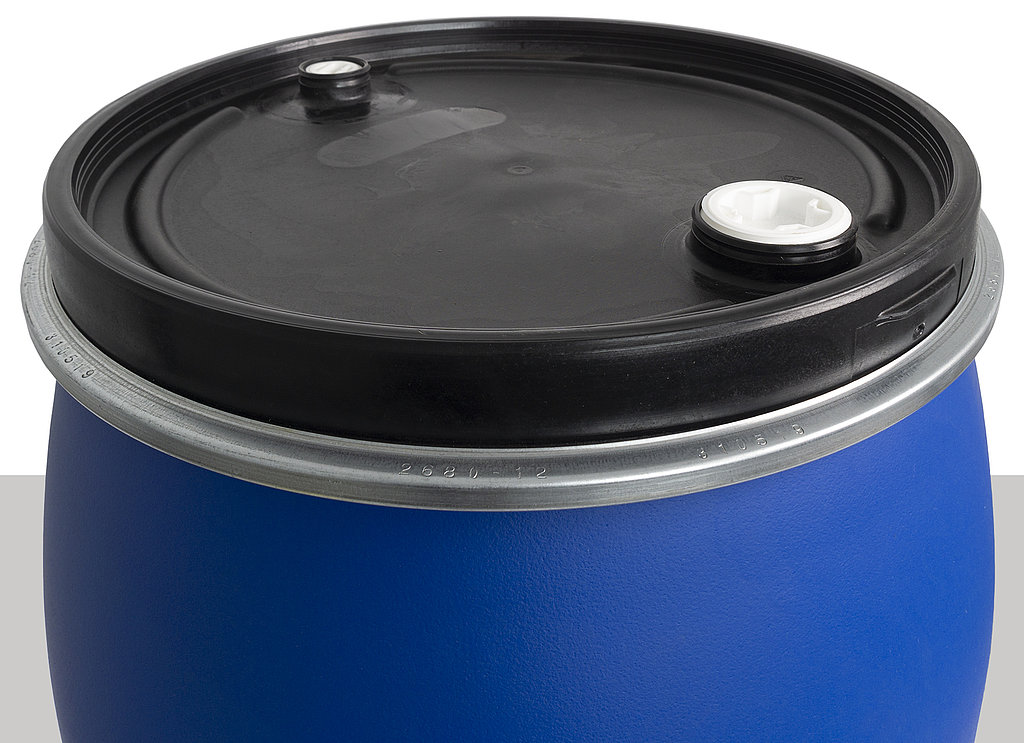

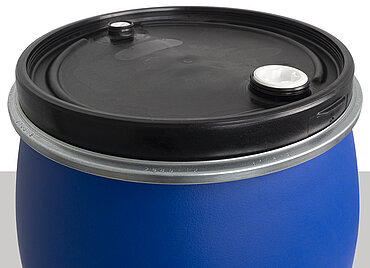

| lid | lid with foam rubber seal and galvanized clamping ring |
| lid colour | black |
| versions | Weight drum body 7,5 kg |

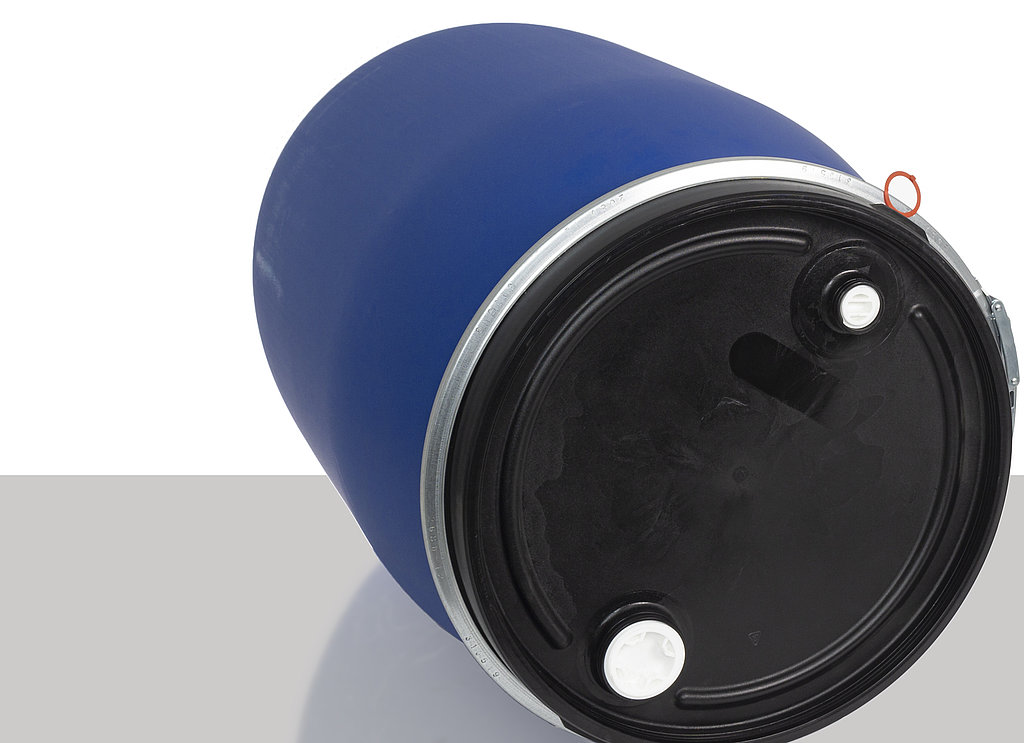

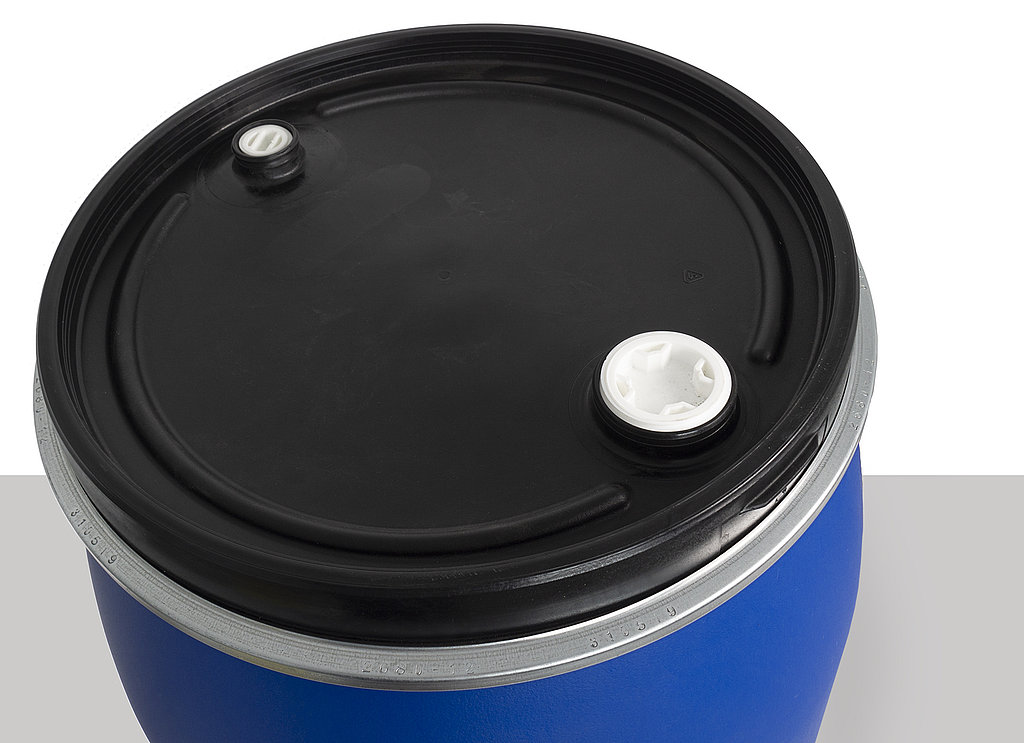

| closures | clamping ring cover with 2 bungs 70x6 + 38x6 |
| minimum order quantity | 4 item. |
| pallet unit | 4 item. |
| pallet type | euro-pallet |
| other | Standard dimensions as of DIN 12714 NC and VCI-manual. Hundred percent sealing between lid and body via PU-foam insert lid seal with high elasticity and good recovery. Easy handling of closure. Protected clamping rings prevent climbing of containers during transport. Handling via customary drum gripper possible. Top closed or with spout closure. |
Accessories
-
![drum seal of PE]()
![]()
- title
- drum seal
- colour
- red
- material
- PE
- seal
- self
- item number
- 94-0650-90-04-00-077
-
![splint of galvanized sheet steel]()
![]()
- title
- splint
- colour
- silver
- material
- galvanized sheet steel
- versions
- T-version 15 mm wide
- item number
- 94-0650-90-16-00-070
-
![Measuring scoop of PP]()
![]()
- title
- Measuring scoop
- colour
- white
- material
- PP
- item number
- 93-0250-40-02-00-058
-
![Measuring scoop of PP]()
![]()
- title
- Measuring scoop
- colour
- white
- material
- PP
- item number
- 93-0500-40-02-00-058
-

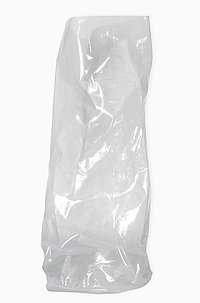

![PE-Inliner of LD-PE]()
![]()
- title
- PE-Inliner
- mouth
- 480,0 mm
- colour
- transparent
- material
- LD-PE
- item number
- 41-60-0480-1200-082
-
![Closure help of steel]()
![]()
- title
- Closure help
- colour
- galvanized
- material
- steel
- versions
- coated PVS handle
- item number
- 94-0150-70-16-00-116
