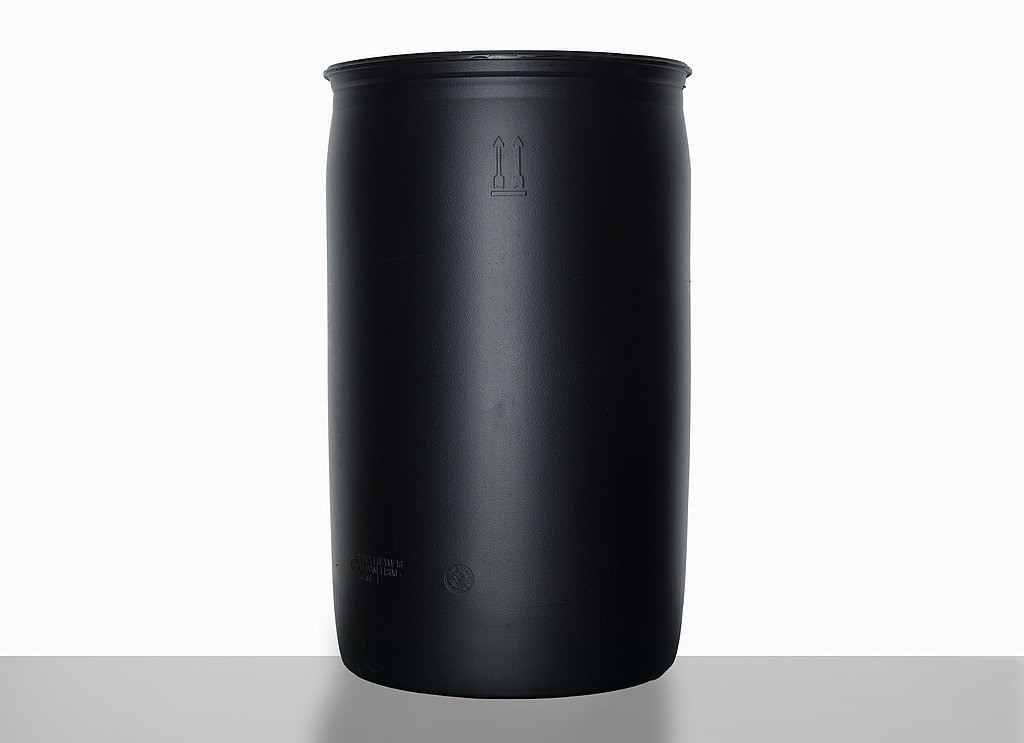

Plastic tight head drum explosion protected, 220,0 liter

Drum of Plastic with nominal volume 220,0 liter

colour : black
UN approval : UN 1H1/Y1.9/200

item nr: 07-0220-80-03-93-020

Technical Details

item number 07-0220-80-03-93-020
title Plastic tight head drum explosion protected
nominal volume 220,0 l
overrun volume 221,0 l
colour black
material HDPE
weight 8.500 g
UN approval UN 1H1/Y1.9/200
height outside 935,0 mm
Diameter bottom outside 581,0 mm
Diameter top outside 581,0 mm
mouth 50,0 mm
stackable yes
ex protection yes

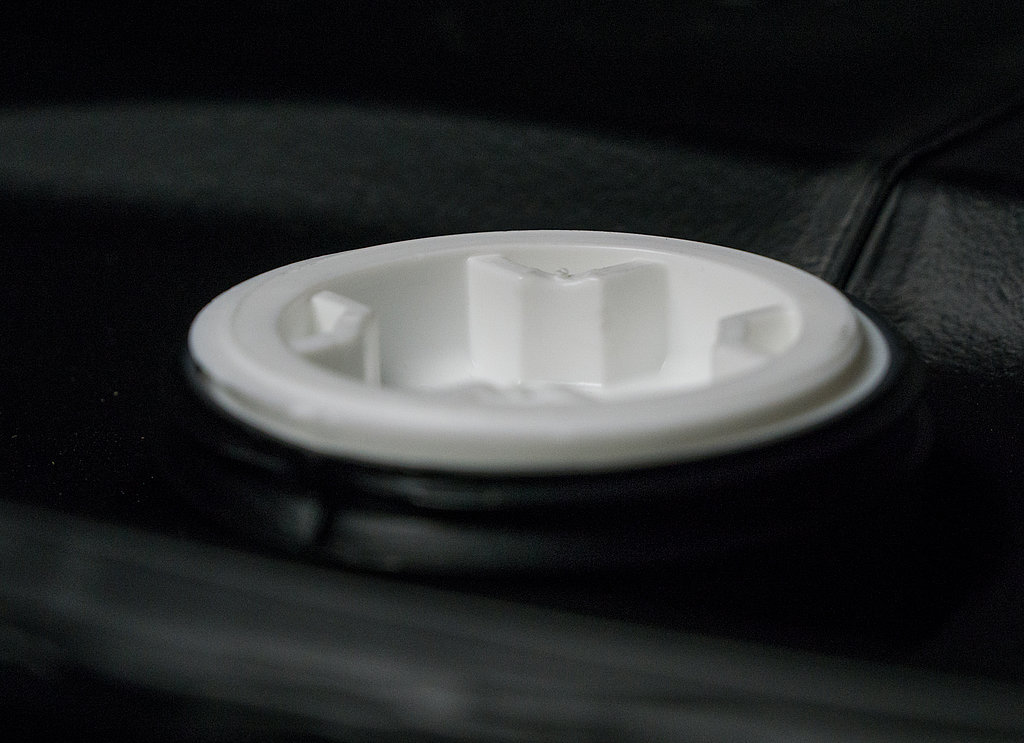

authenticity plastic sealing caps

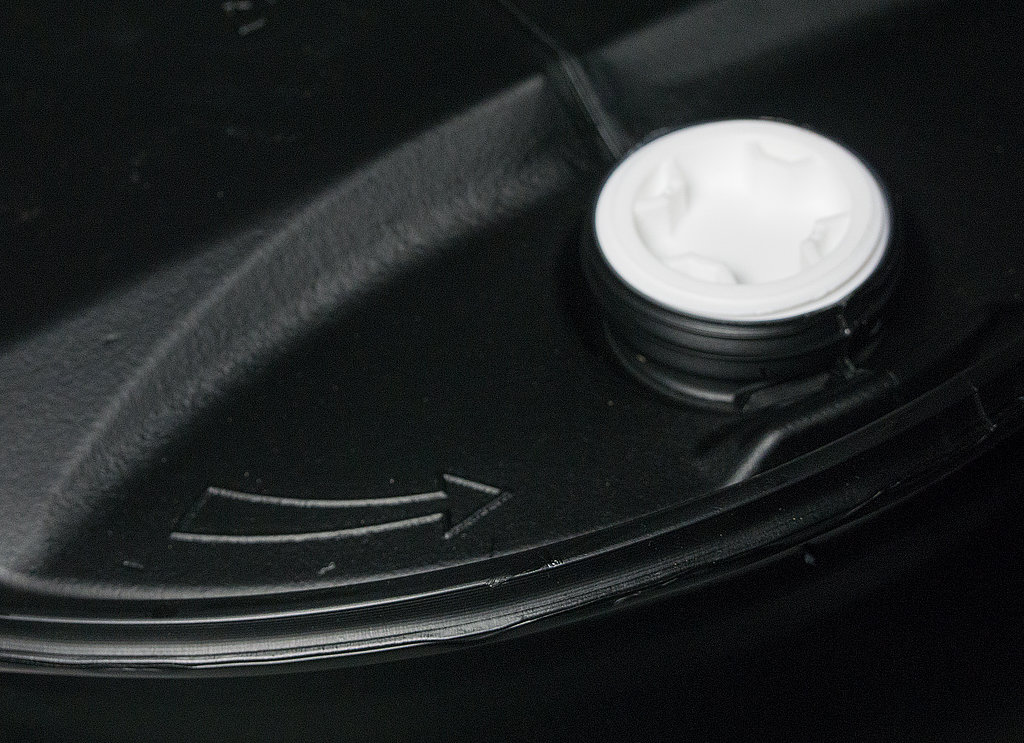

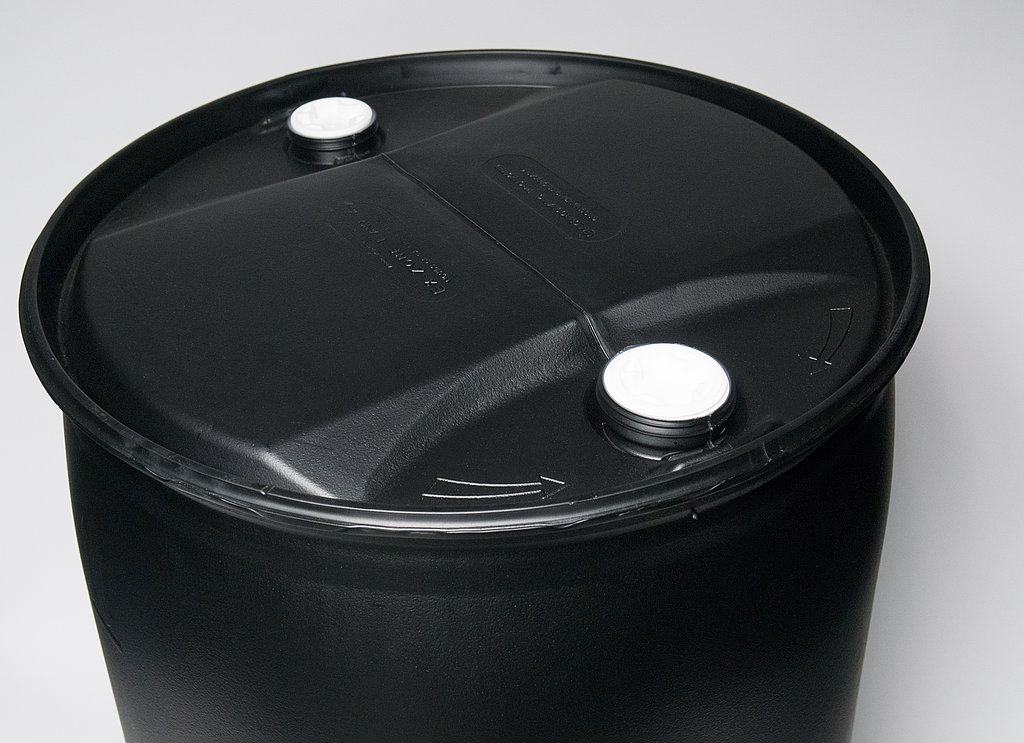

closures 2 x 2" (S70x6 + S56 x 4)
minimum order quantity 40 item.
pallet unit 4 item.
pallet type euro-pallet
other Outer layer made of conductive material. Grounding of filling material via contact strip. Certified for electrostatic safety. Suitable for use in explosion protected zones 1+2.

Accessories

  • title
    barrel key
    colour
    galvanised
    material
    galvanised sheet steel
    UN approval
    none
    item number
    94-0500-90-16-00-031
    more details
  • title
    capsule closure device "Clinch 2"
    colour
    galvanised
    material
    sheet steel
    UN approval
    none
    item number
    94-0510-70-16-00-031
    more details
  • title
    capsule closure device "Clinch 3/4"
    material
    sheet steel
    UN approval
    none
    item number
    94-0511-70-16-00-031
    more details
  • title
    Drum pump
    colour
    golden
    material
    plastic
    mouth
    50,0 mm
    UN approval
    none
    item number
    94-0850-90-07-00-076
    more details
  • title
    drum pump
    colour
    blue/black
    material
    PP
    UN approval
    none
    item number
    94-0850-90-05-00-033
    more details
  • title
    Bung plug with outlet tap
    colour
    white/natural/red
    material
    HDPE
    mouth
    50,0 mm
    UN approval
    none
    item number
    94-0602-90-04-70-019
    more details
  • title
    drum pump adapter
    colour
    orange
    material
    PE
    mouth
    51,0 mm
    UN approval
    none
    item number
    94-0700-50-11-00-040
    more details
  • title
    Adapter "Mauser course thread"
    colour
    blue
    material
    PP
    mouth
    51,0 mm
    UN approval
    none
    item number
    94-0700-90-05-00-076
    more details
  • title
    faucet 2" Flo-King
    colour
    brown
    material
    PE
    mouth
    51,0 mm
    UN approval
    none
    item number
    94-0600-50-10-00-068
    more details
