Technical Details
| item number | 21-0120-08-05-10-021 |

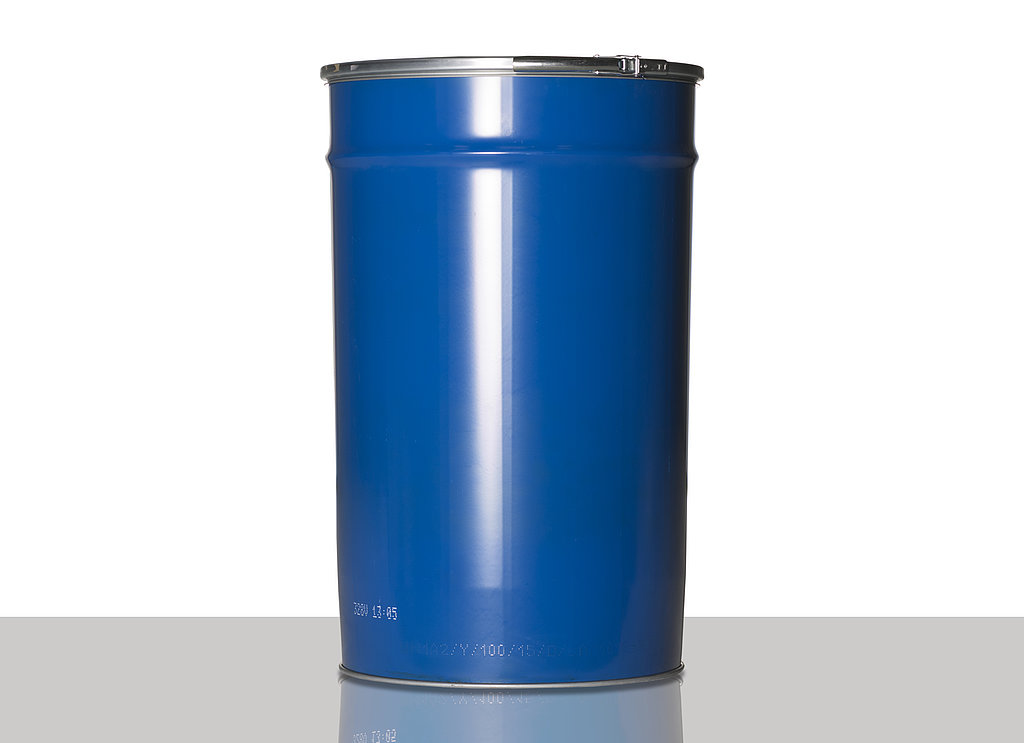

| title | Sheet steel open head drum with inner lacquer |
| nominal volume | 120,0 l |
| overrun volume | 118,1 l |
| colour | blue RAL 5010 |
| material | sheet steel |
| weight | 10,42 kg |
| UN approval | UN 1A2/Y100/ liquids |
| height outside | 775,0 mm |
| Diameter bottom outside | 445,0 mm |
| Diameter top outside | 470,0 mm |
| Diameter top inside | 495,0 mm |
| Diameter bottom inside | 433,0 mm |
| mouth | 475,0 mm |
| filler hole | 470,0 mm |
| plate thickness body | 0,8 mm |
| plate thickness lid | 1,0 mm |
| plate thickness bottom | 0,8 mm |
| stackable | yes |
| nestable | yes |
| food safe | yes |

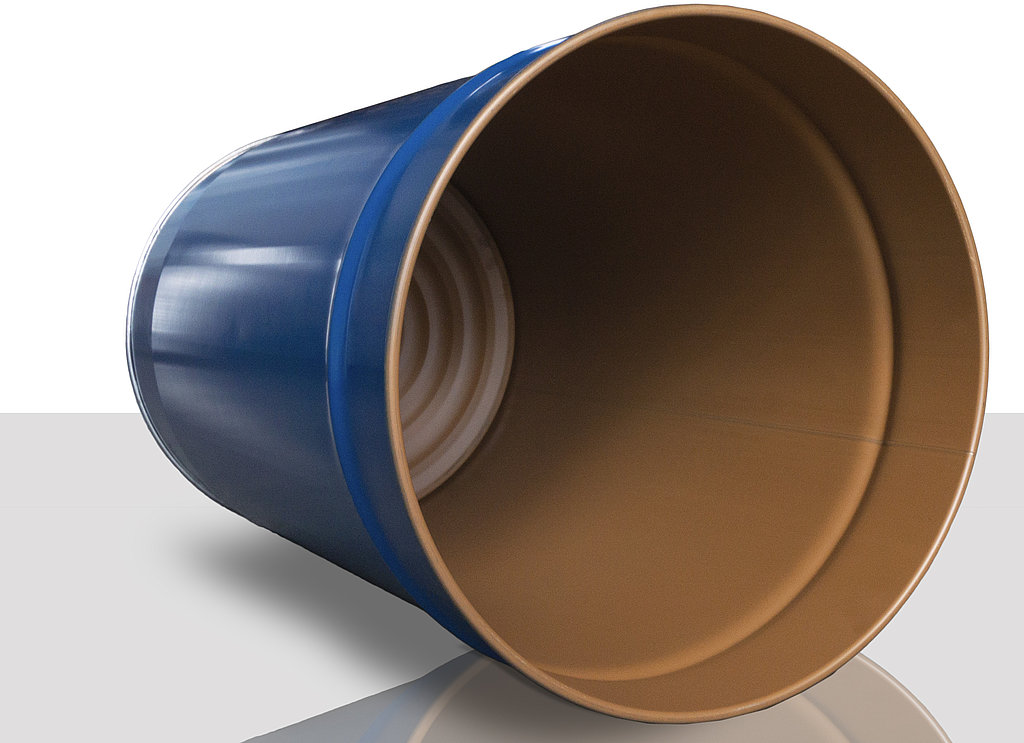

| interior coating | R78433 |

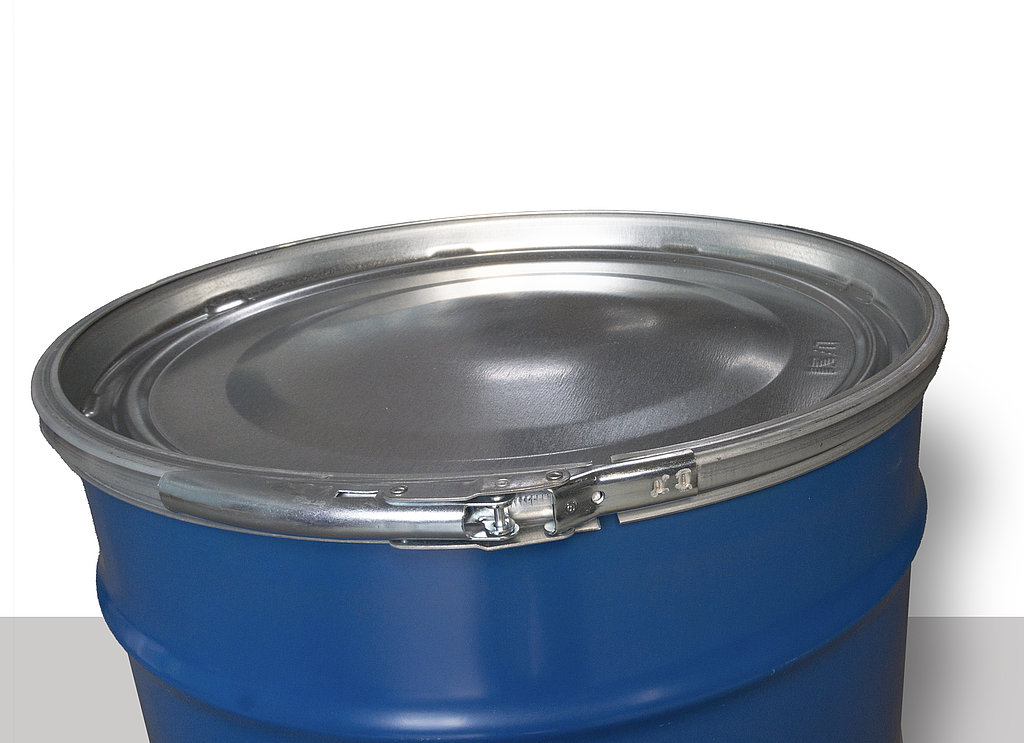

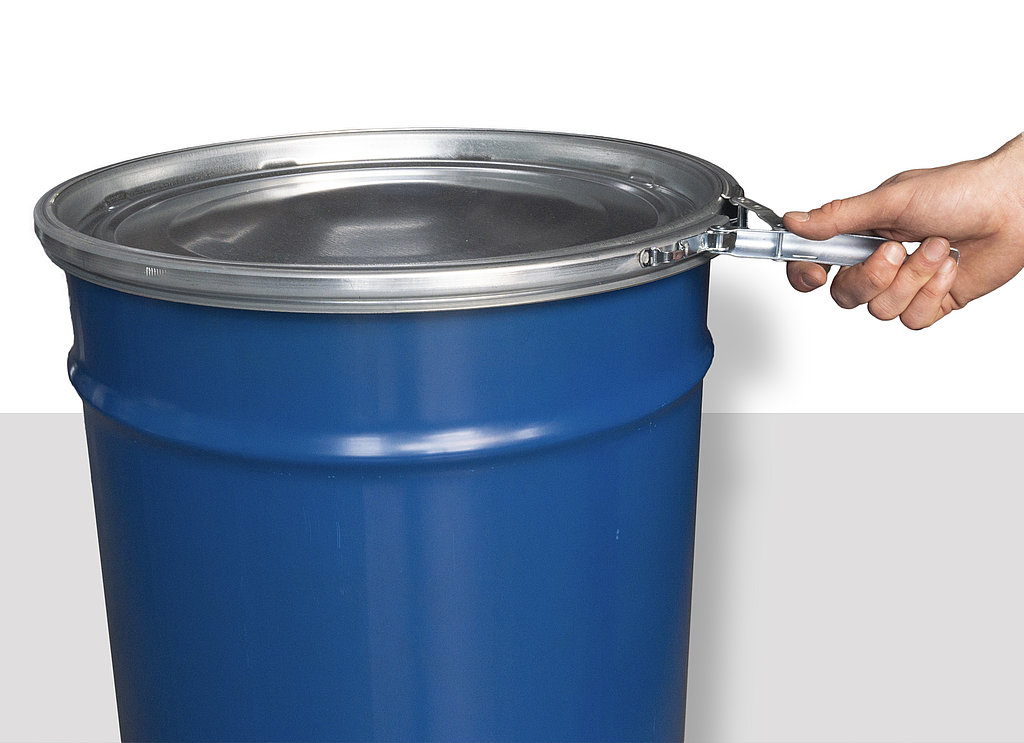

| lid | with seal and clamping ring |
| seal | foam rubber seal 9 mm |
| versions | conical |
| pallet unit | 46 item. |
| pallet type | CP1 |
| pallet height | 2,15 m |
| weight per pallet | 500,00 kg |
Accessories
-
![Measuring scoop of PP]()
![]()
- title
- Measuring scoop
- colour
- white
- material
- PP
- item number
- 93-0250-40-02-00-058
-
![Measuring scoop of PP]()
![]()
- title
- Measuring scoop
- colour
- white
- material
- PP
- item number
- 93-0500-40-02-00-058
-
![Closure help of steel]()
![]()
- title
- Closure help
- colour
- galvanized
- material
- steel
- versions
- coated PVS handle
- item number
- 94-0150-70-16-00-116
