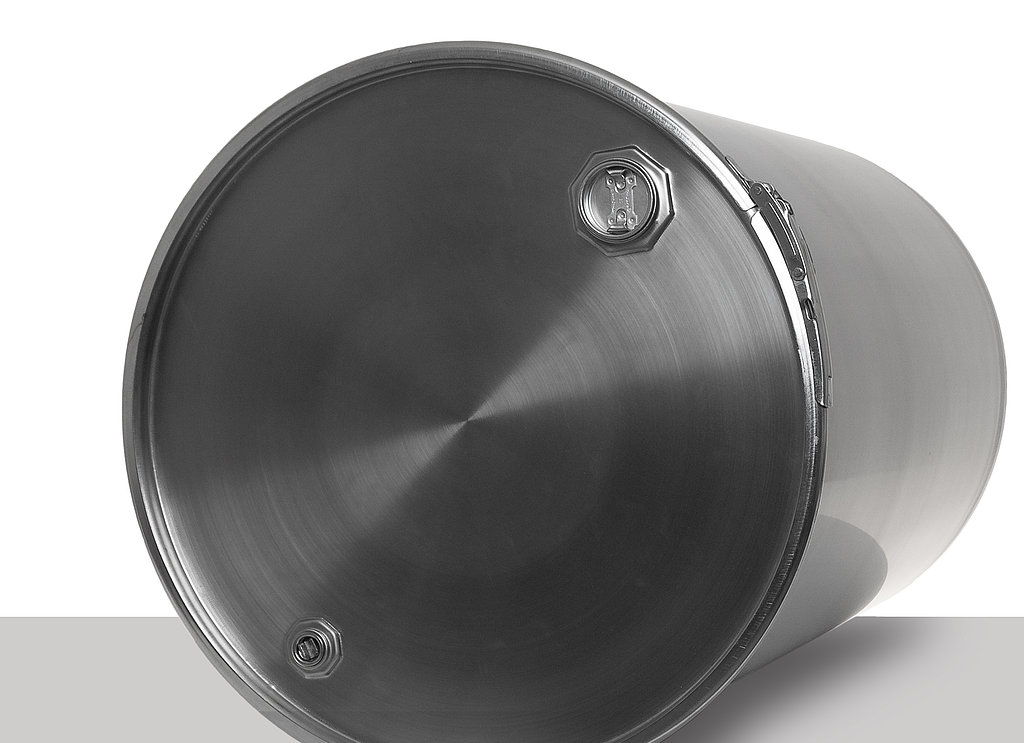

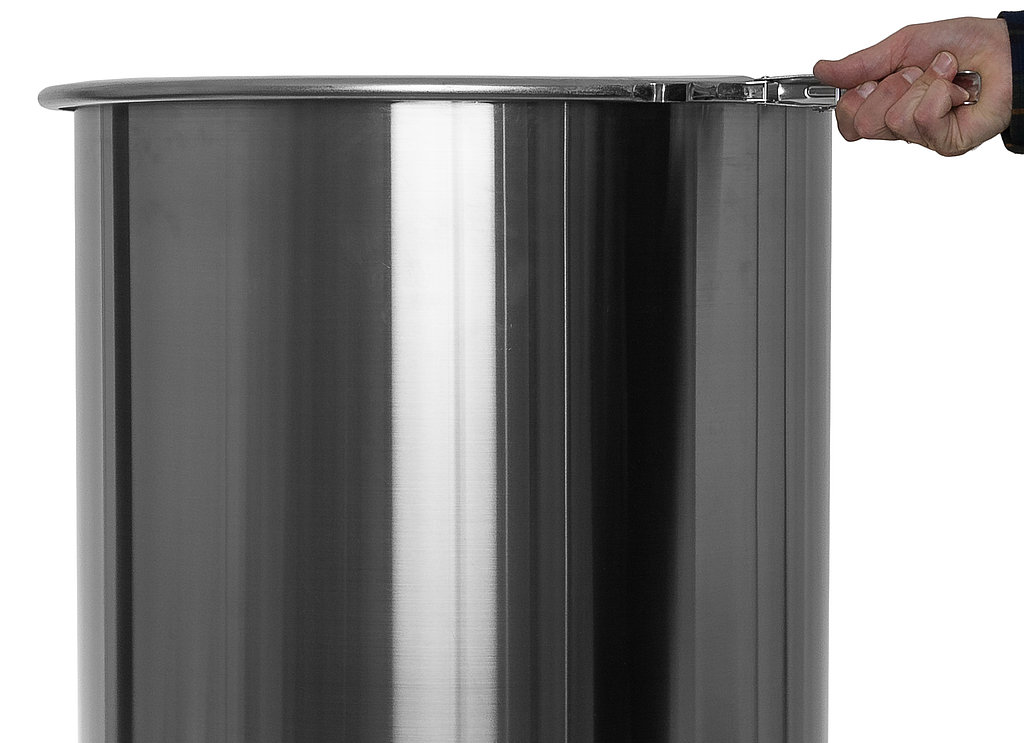

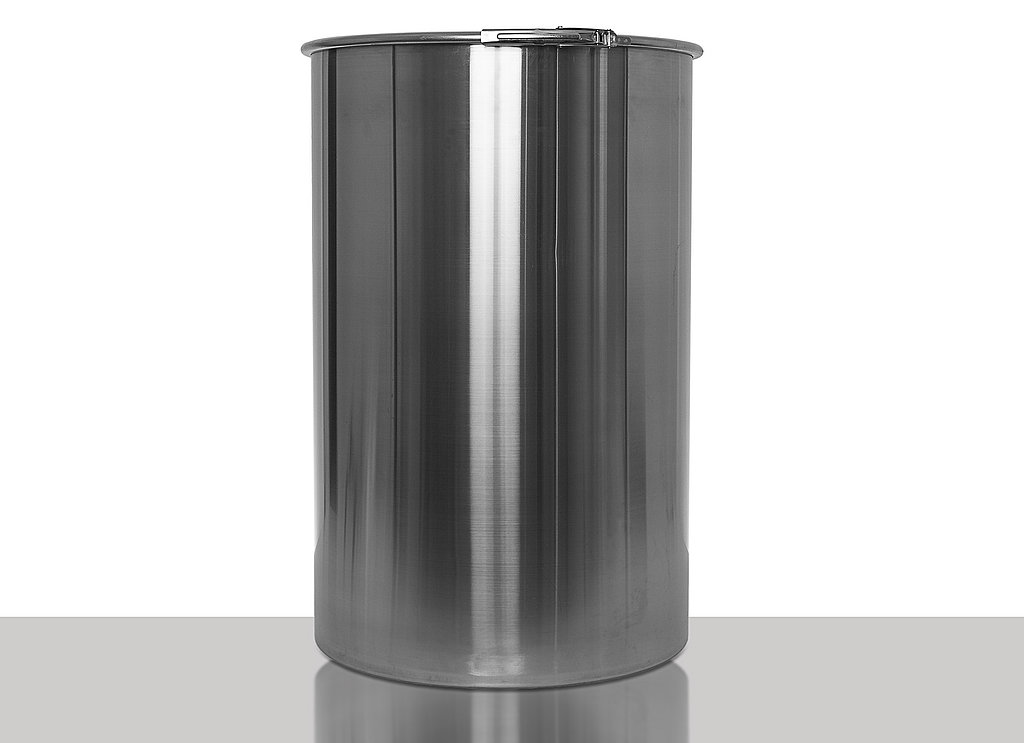

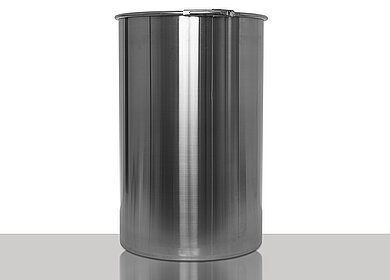

Stainless steel open head drum, 210,0 liter

Drum of Edelstahl with nominal volume 210,0 liter

colour : stainless steel matt

item nr: 26-0210-22-25-10-117

Technical Details

item number 26-0210-22-25-10-117
title Stainless steel open head drum
nominal volume 210,0 l
overrun volume 213,0 l
colour stainless steel matt
material stainless steel
weight 19,50 kg
UN approval none
height outside 890,0 mm
Diameter bottom outside 616,0 mm
Diameter top outside 616,0 mm
filler hole 572,0 mm
plate thickness body 1,2 mm
plate thickness lid 1,2 mm
plate thickness bottom 1,2 mm
stackable yes
food safe yes
bottom grooved and resistance welded
thickness 1,0 mm continuous
quality 2 beads

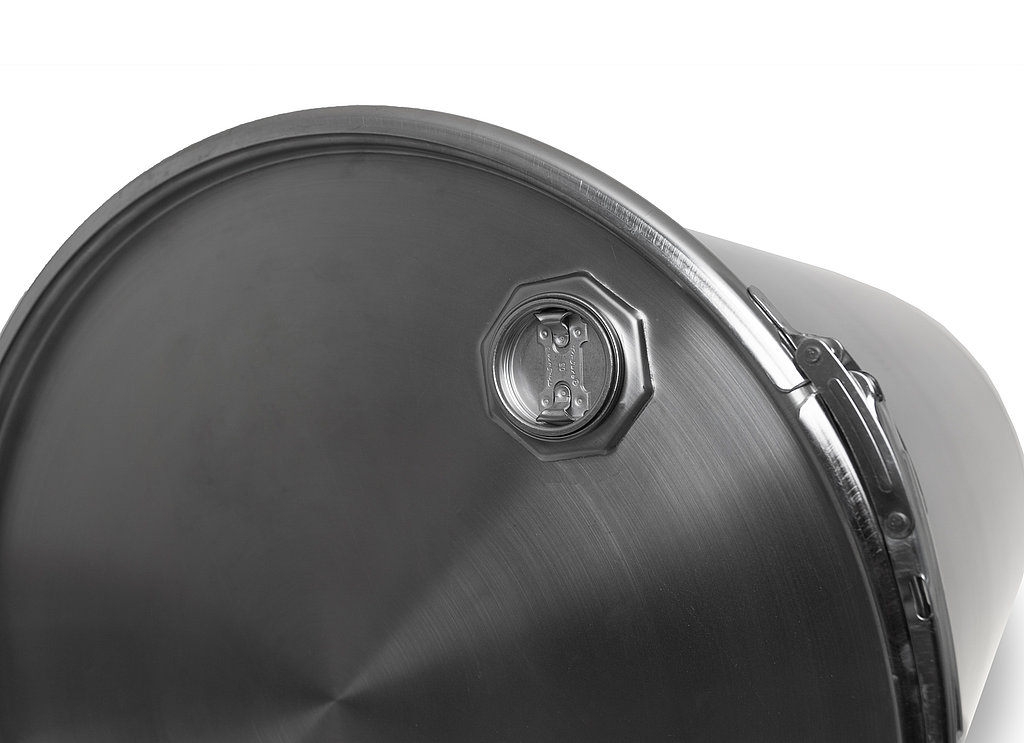

versions 2" + 3/4" stainless steel fittings with PE sealings
pallet unit 4 item.
other Body seam plasma-welded, drainable. Sealant-free seaming and an additional circumferential weld on the base enable chemical resistance to aggressive filling goods and filling temperatures of up to 200°C

Further Info

Stainless steel is a rust-free and durable steel that is characterized, among other things, by its excellent resistance to a wide range of chemicals. Our stainless steel tanks are made from grade SS316 and are ideally suited for industrial plant construction due to their durability.
