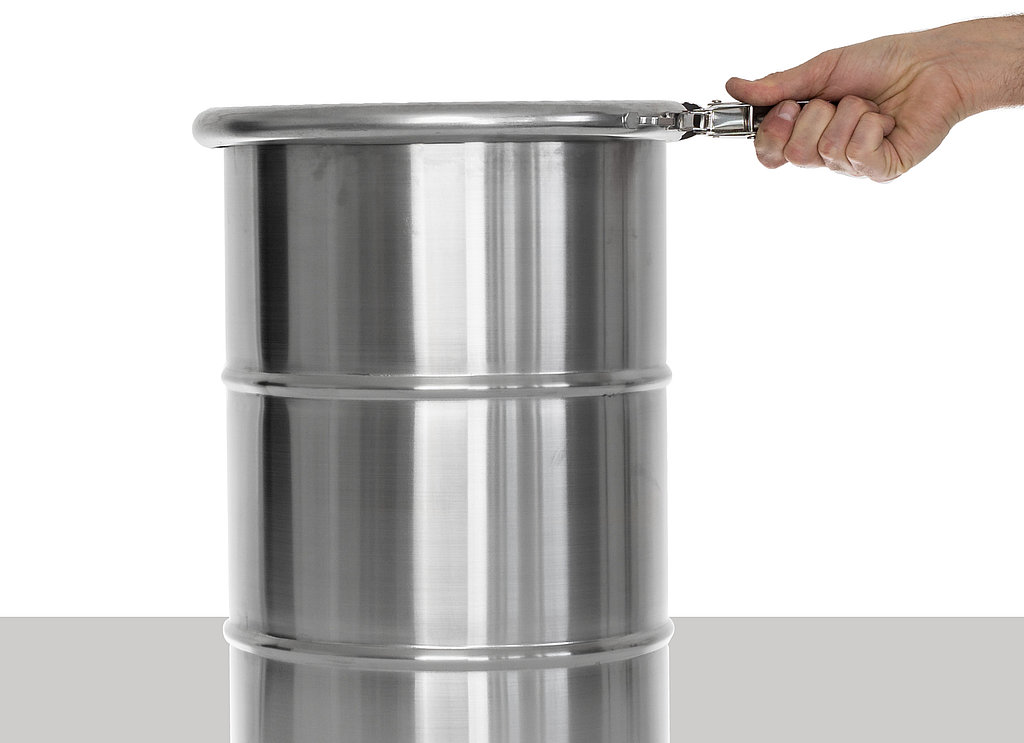

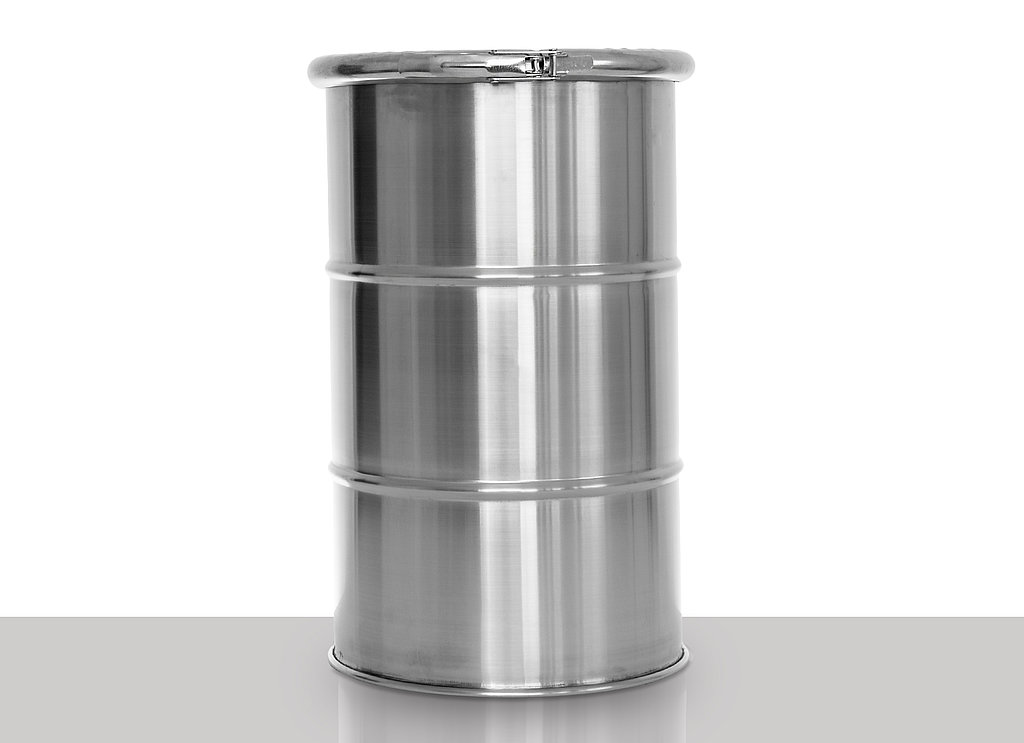

Stainless steel open head drum, 30,0 liter

Drum of Edelstahl with nominal volume 30,0 liter

colour : matte stainless steel

item nr: 26-0030-22-25-00-117

Technical Details

item number 26-0030-22-25-00-117
title Stainless steel open head drum
nominal volume 30,0 l
overrun volume 30,5 l
colour matte stainless steel
material stainless steel
weight 6.200 g
UN approval none
height outside 520,0 mm
Diameter bottom outside 328,0 mm
Diameter top outside 328,0 mm
mouth 328,0 mm
filler hole 310,0 mm
plate thickness body 1,0 mm
plate thickness lid 1,0 mm
plate thickness bottom 1,0 mm
stackable yes
food safe yes
bottom resistance welded
thickness 1,0 mm throughout
quality 2 beads

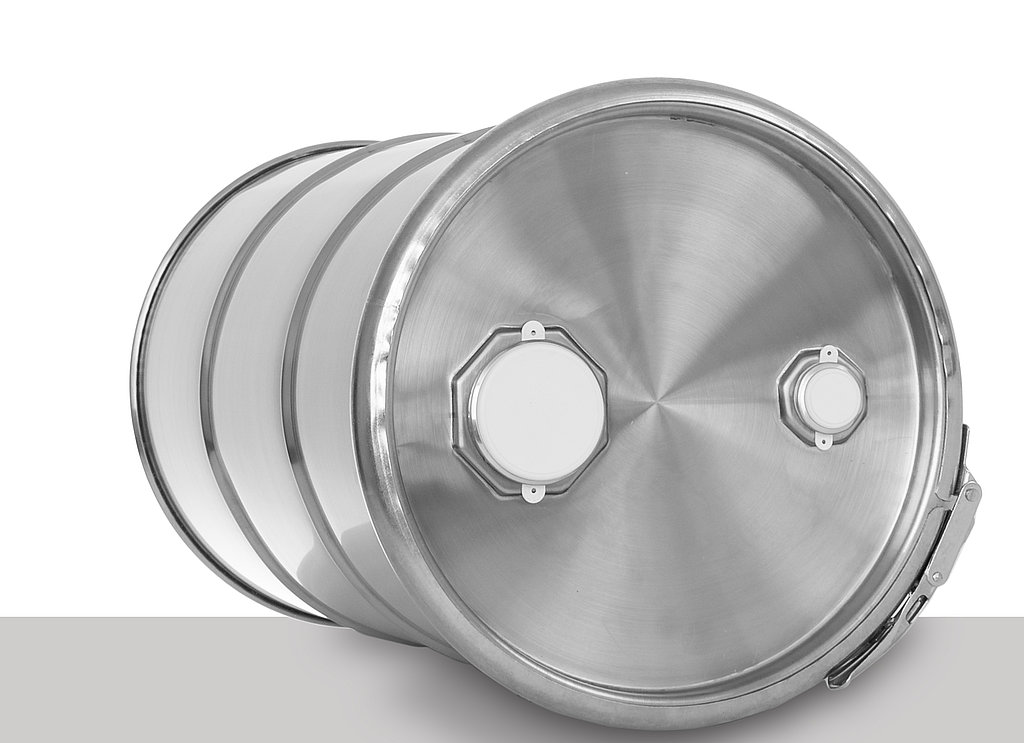

versions 2" and 3/4" stainless steel screw connections with PE-seals
other Body joints are plasma welded. Drainable

Further Info

Stainless steel is a rust-free and durable steel that is characterized, among other things, by its excellent resistance to a wide range of chemicals. Our stainless steel tanks are made from grade SS316 and are ideally suited for industrial plant construction due to their durability.
