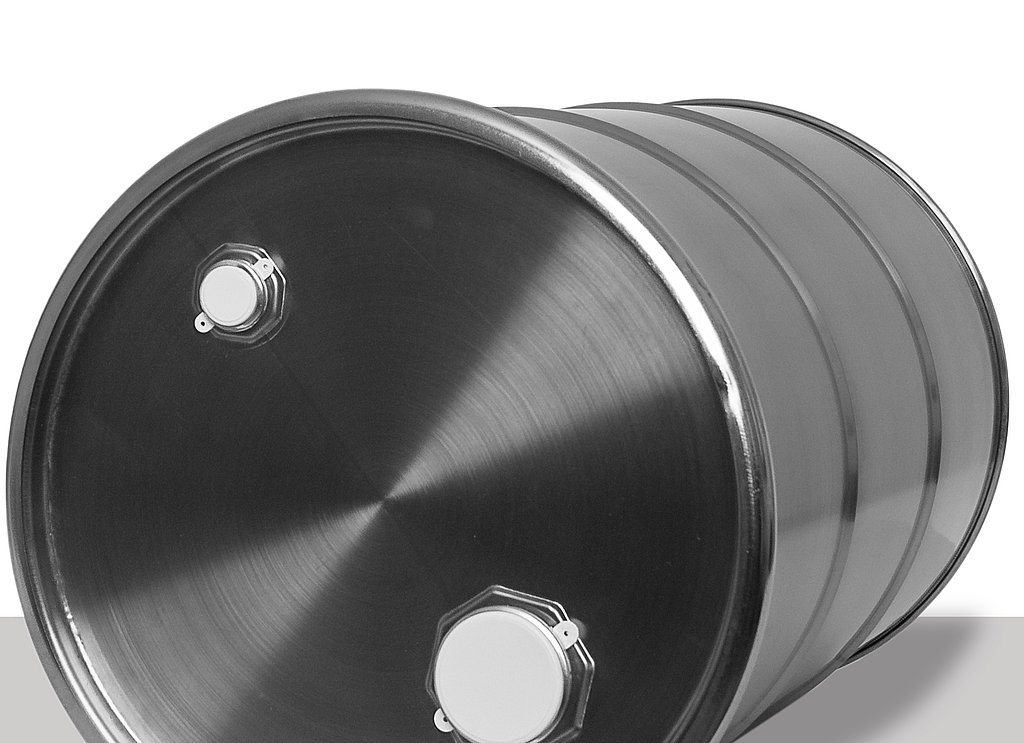

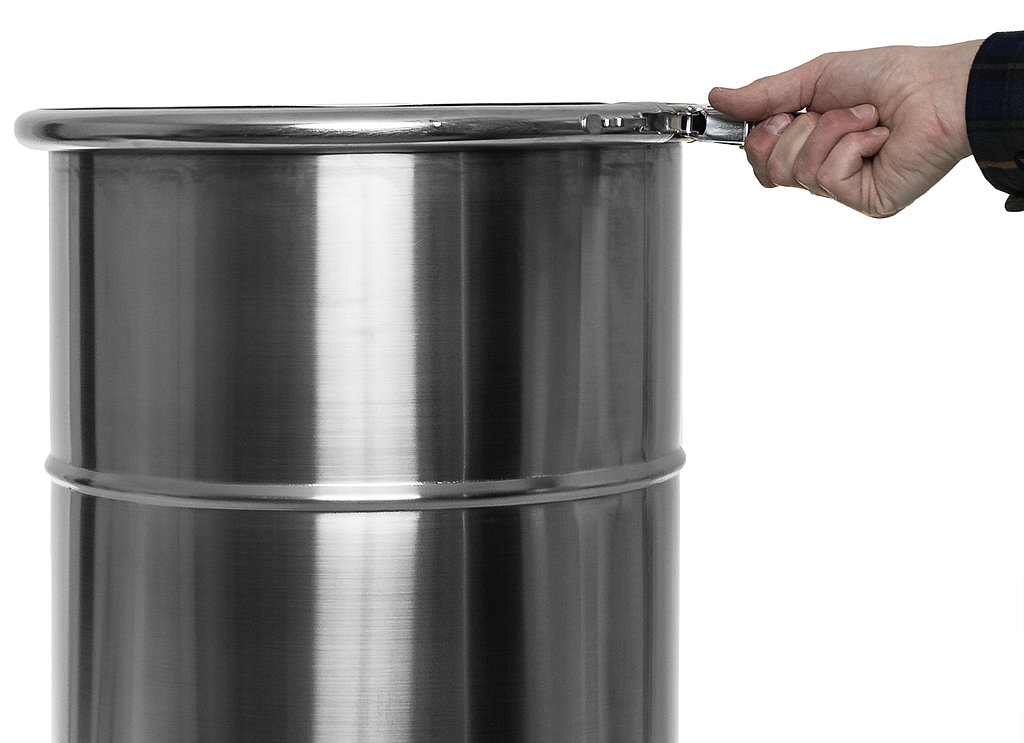

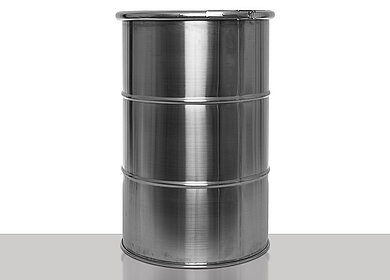

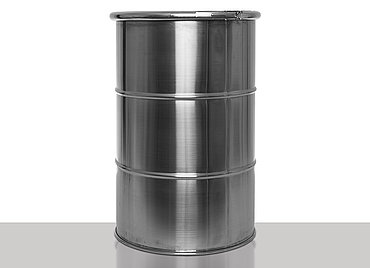

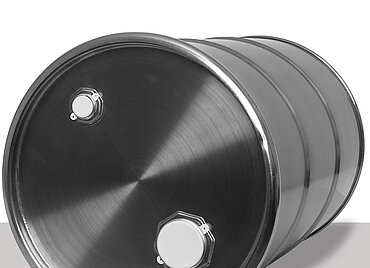

Stainless steel open head drum, 60,0 liter

Drum of Edelstahl with nominal volume 60,0 liter

colour : stainless steel matt

item nr: 26-0060-22-25-01-117

Technical Details

item number 26-0060-22-25-01-117
title Stainless steel open head drum
nominal volume 60,0 l
overrun volume 61,0 l
colour stainless steel matt
material stainless steel
weight 8.900 g
UN approval none
height outside 585,0 mm
Diameter bottom outside 395,0 mm
Diameter top outside 395,0 mm
mouth 395,0 mm
filler hole 375,0 mm
plate thickness body 1,0 mm
plate thickness lid 1,0 mm
plate thickness bottom 1,0 mm
stackable yes
food safe yes
bottom grooved and resistance welded
thickness 1,0 mm continuous
quality 2 beads

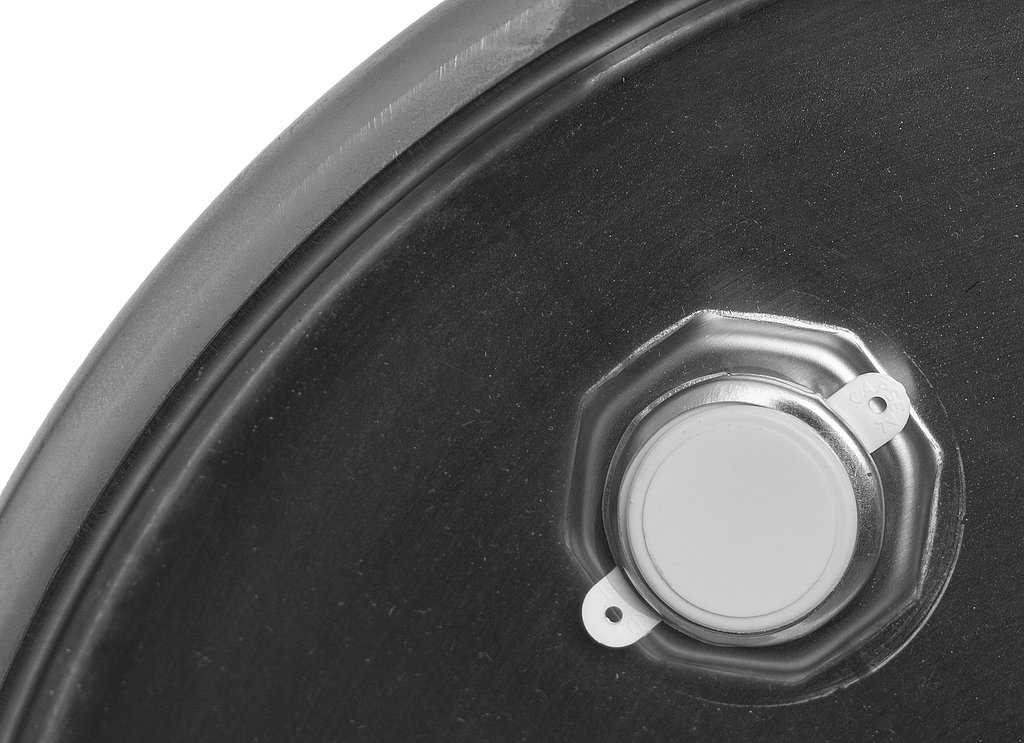

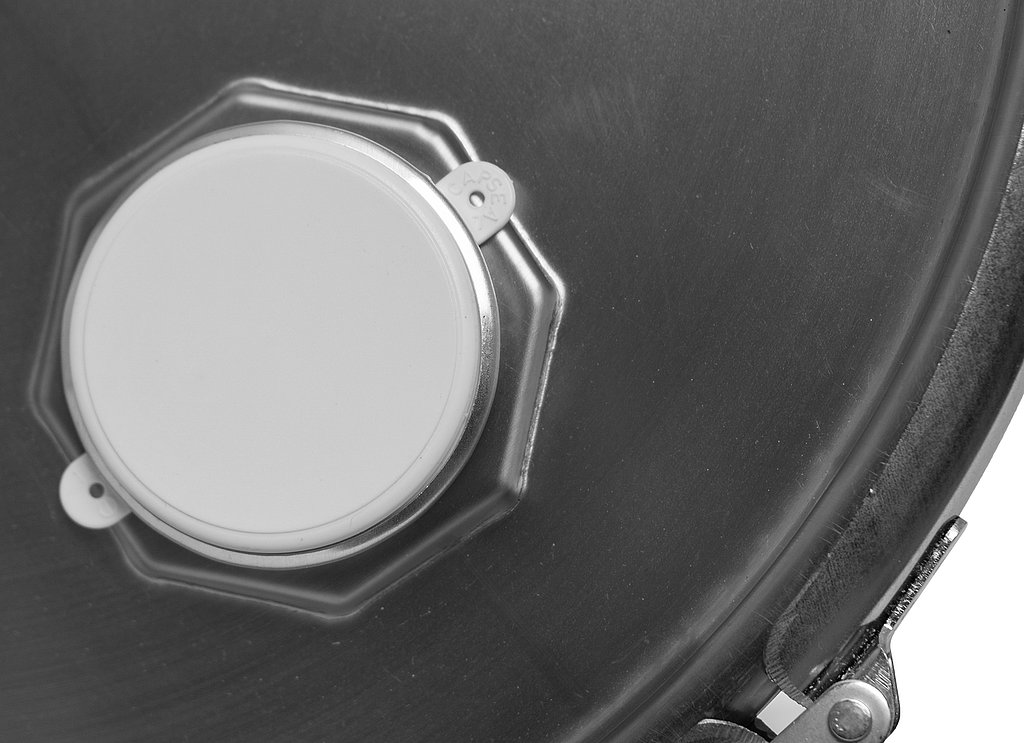

versions 2" + 3/4" stainless steel fittings with PE sealings
other joint at back is plasma welded and can be emptied out completely. Sealant-free seaming and an additional circumferential weld on the base enable chemical resistance to aggressive filling goods and filling temperatures of up to 200°C

Further Info

Stainless steel is a rust-free and durable steel that is characterized, among other things, by its excellent resistance to a wide range of chemicals. Our stainless steel tanks are made from grade SS316 and are ideally suited for industrial plant construction due to their durability.
