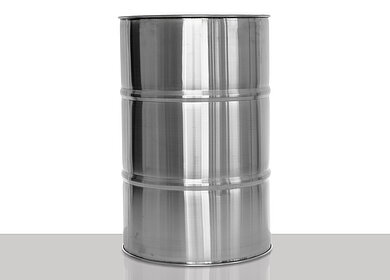

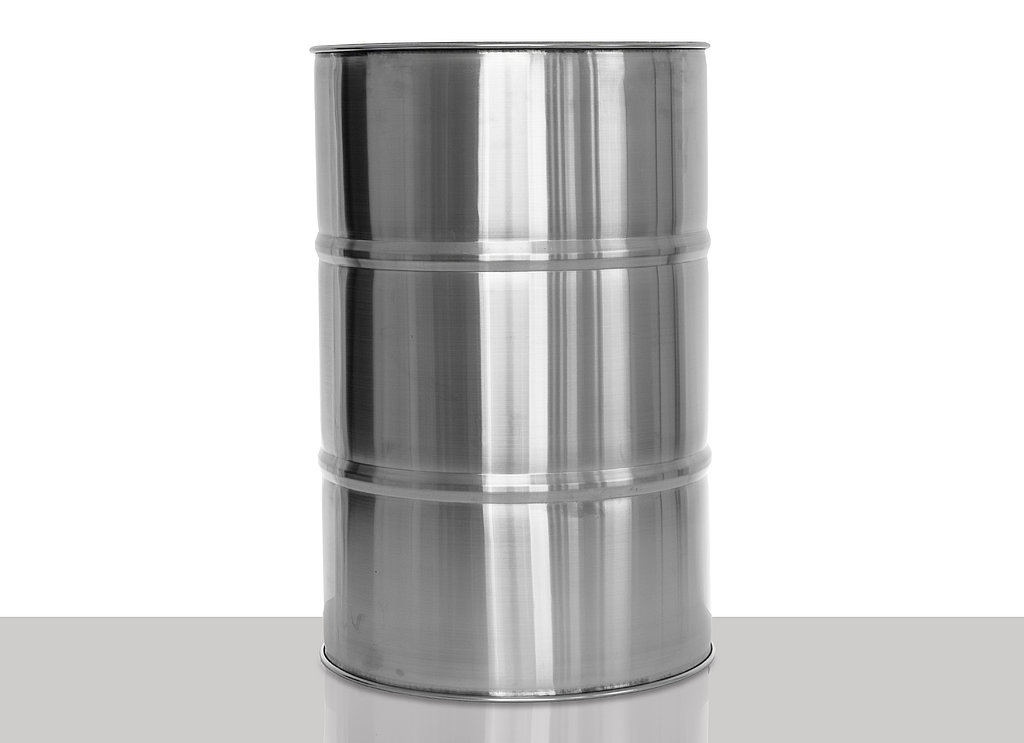

Stainless steel tight head drum, 100,0 liter

Drum of Edelstahl with nominal volume 100,0 liter

colour : matte stainless steel


UN approval : UN 1A1/X1.6/250

item nr: 26-0100-20-25-21-117

Technical Details

item number 26-0100-20-25-21-117
title Stainless steel tight head drum
nominal volume 100,0 l
colour matte stainless steel
material stainless steel
weight 12,35 kg
UN approval UN 1A1/X1.6/250
height outside 700,0 mm
Diameter bottom outside 455,0 mm
Diameter top outside 455,0 mm
mouth 455,0 mm
filler hole 445,0 mm
hoops 2
plate thickness body 1,0 mm
plate thickness lid 1,0 mm
plate thickness bottom 1,0 mm
stackable yes
food safe yes
bottom resistance welded
versions rough on the inside
other Body joints are plasma welded. Drainable

Further Info

Stainless steel is a rust-free and durable steel that is characterized, among other things, by its excellent resistance to a wide range of chemicals. Our stainless steel tanks are made from grade SS316 and are ideally suited for industrial plant construction due to their durability.
