Technical Details
| item number | 26-0030-20-25-21-117 |

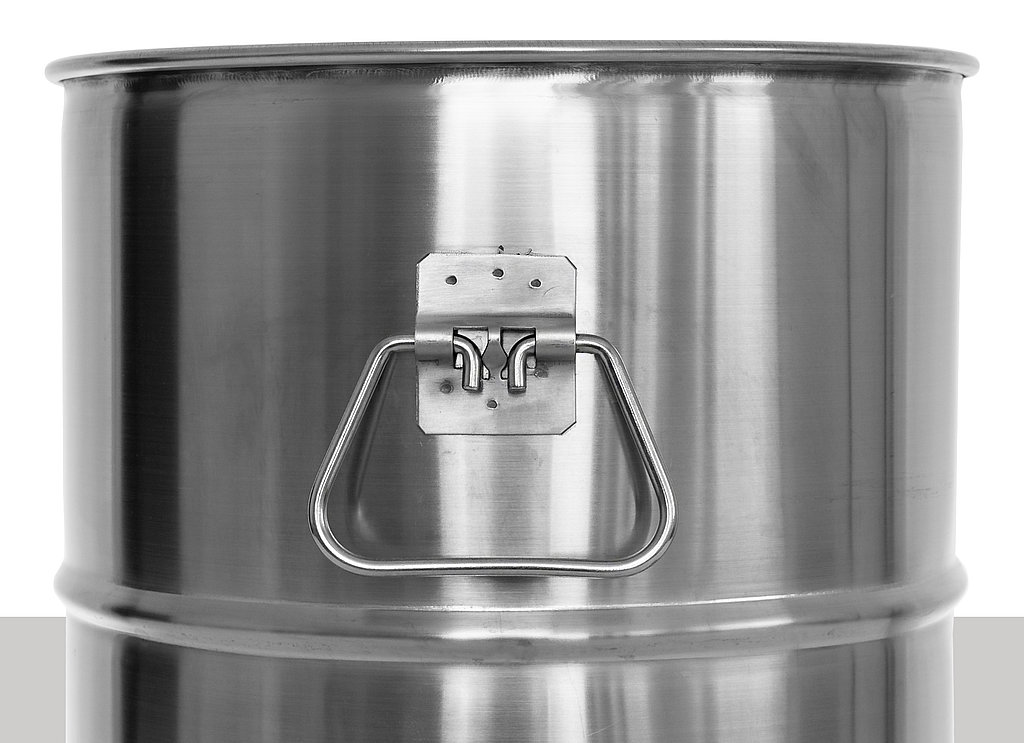

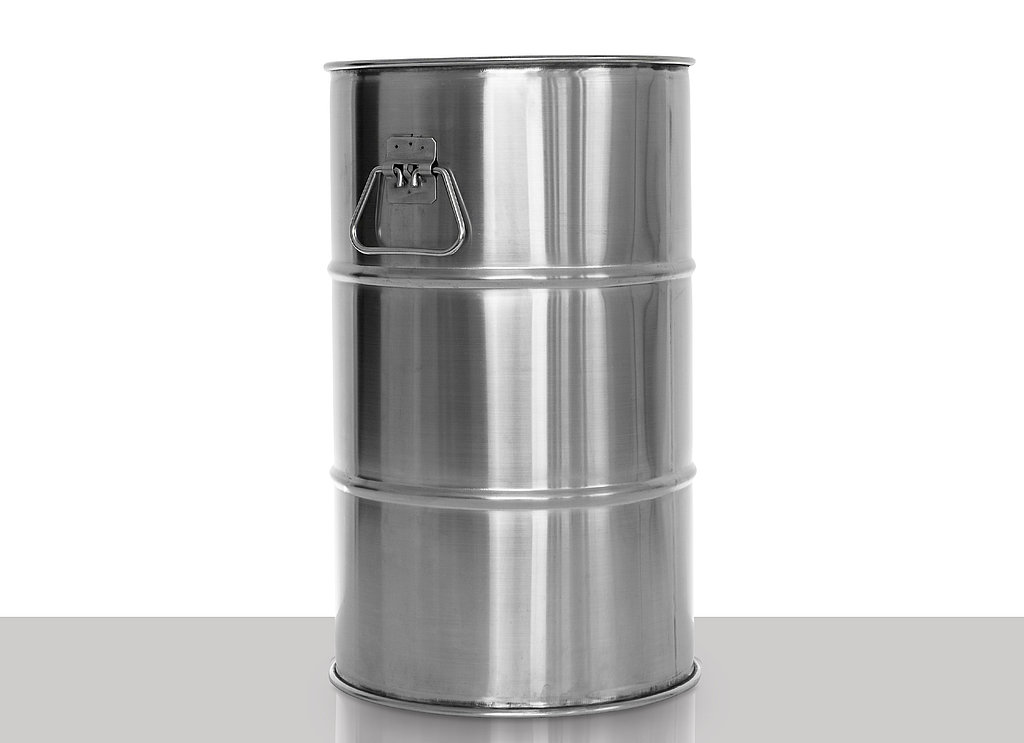

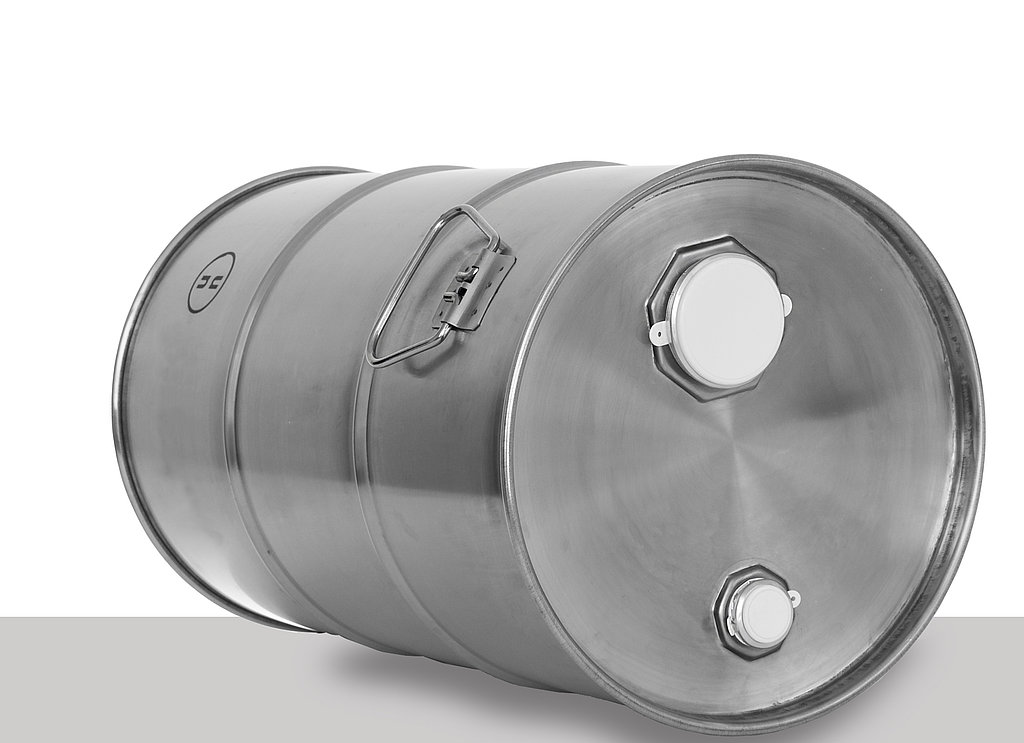

| title | Stainless steel tight head drum |
| nominal volume | 30,0 l |
| overrun volume | 32,0 l |
| colour | matte stainless steel |
| material | stainless steel |
| weight | 6.000 g |
| UN approval | UN 1A1/X1.6/250 |
| height outside | 520,0 mm |
| Diameter bottom outside | 310,0 mm |
| Diameter top outside | 310,0 mm |
| mouth | 310,0 mm |
| hoops | 2 |
| plate thickness body | 1,0 mm |
| plate thickness lid | 1,0 mm |
| plate thickness bottom | 1,0 mm |
| stackable | yes |
| food safe | yes |
| bottom | resistance welded |
| versions | rough on the inside |
| other | Body seam plasma welded, can be emptied of residue. Sealant-free seaming enables chemical resistance to aggressive filling goods and filling temperatures of up to 200°C |
Further Info
Stainless steel is a rust-free and durable steel that is characterized, among other things, by its excellent resistance to a wide range of chemicals. Our stainless steel tanks are made from grade SS316 and are ideally suited for plant construction due to their durability.
