Open head drum, 213,0 liter

  1. Home
  2. Product overview
  3. Drums
  4. Sheet steel open head drums

  5. Sheet steel open head drums, 213,0 l in blue RAL 5010, 1A2/X420/S + 1A2/Y1.5/150, mouth 572,0 mm

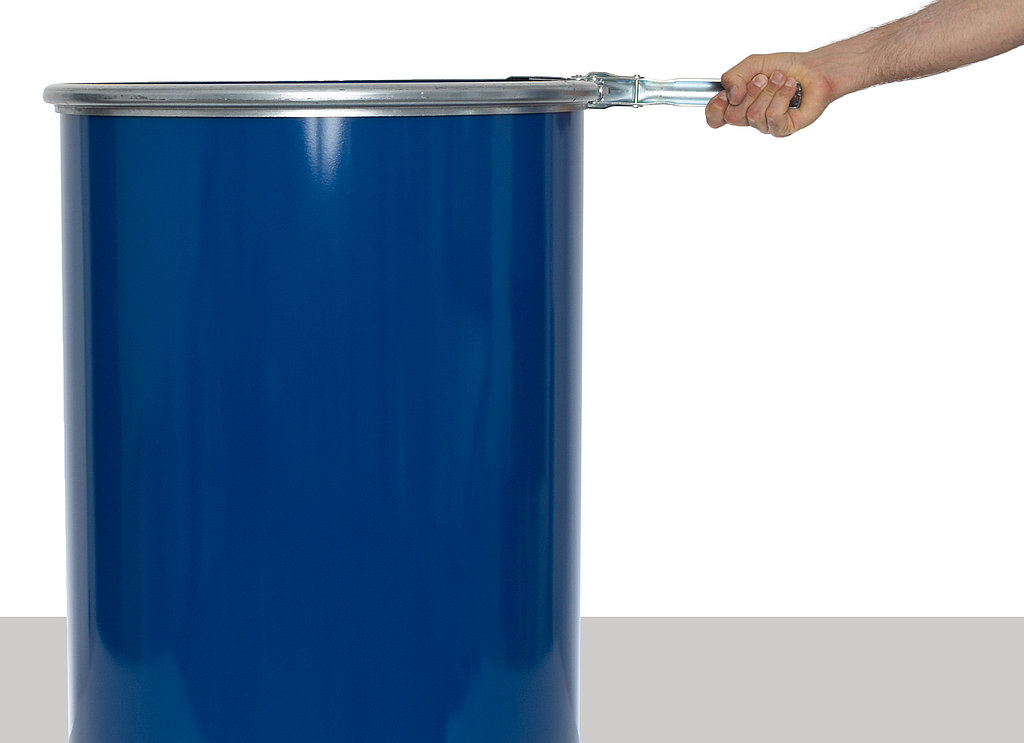

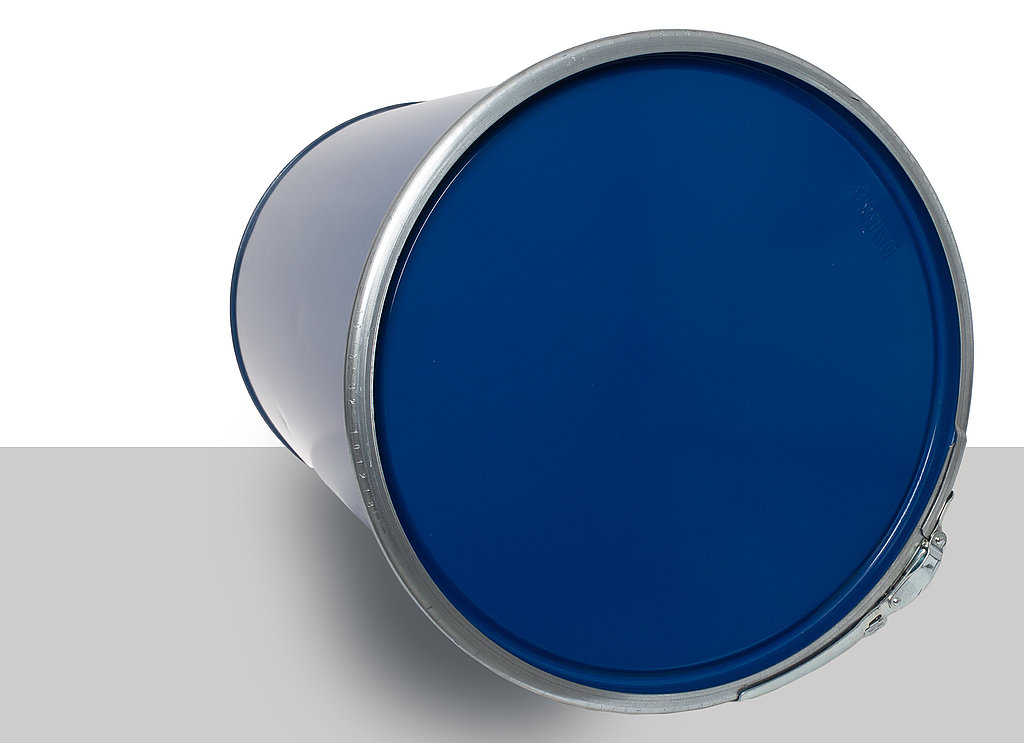

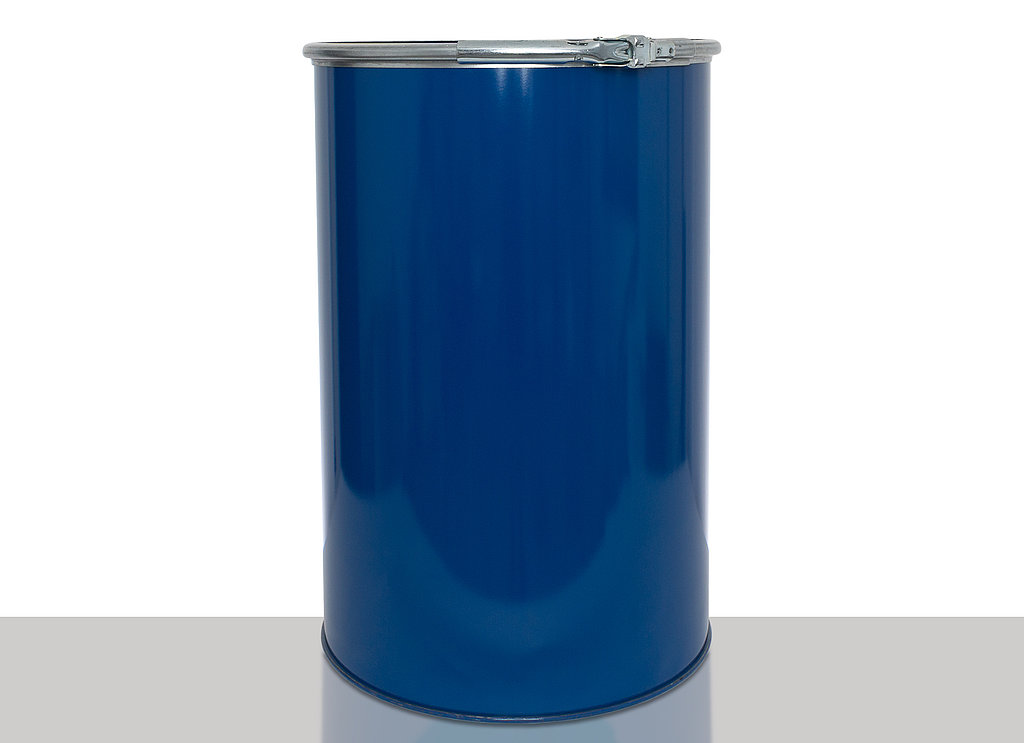

Drum of Sheet steel with nominal volume 213,0 liter

colour: blue RAL 5010


UN approval: 1A2/X420/S + 1A2/Y1.5/150

item nr: 21-0216-00-05-00-038

contact
watchlist

Technical Details

item number 21-0216-00-05-00-038
title Open head drum
nominal volume 213,0 l
colour blue RAL 5010
material sheet steel
weight 20,00 kg
UN approval 1A2/X420/S + 1A2/Y1.5/150
height inside 843,0 mm
height outside 880,0 mm
Diameter bottom outside 607,0 mm
Diameter top outside 607,0 mm
Diameter top inside 572,0 mm
Diameter bottom inside 572,0 mm
mouth 572,0 mm
hoops smooth walled inside
plate thickness body 1,0 mm
plate thickness lid 1,0 mm
plate thickness bottom 1,0 mm
stackable yes
lid Lid with foam rubber seal and clamping ring
lid colour blue
seal glued in 11,5 mm foam rubber seal
bottom blue
minimum order quantity 4 item.
packaging unit 4 item.
pallet unit 4 item.
pallet type euro-pallet
other ø 571,5 mm inside ø 610 mm outside 880 mm height

Accessories

  • drum seal of PE
    title
    drum seal
    colour
    red
    material
    PE
    seal
    self
    item number
    94-0650-90-04-00-077
    more details
  • splint of galvanized sheet steel
    title
    splint
    colour
    silver
    material
    galvanized sheet steel
    versions
    T-version 15 mm wide
    item number
    94-0650-90-16-00-070
    more details
  • Measuring scoop of PP
    title
    Measuring scoop
    colour
    white
    material
    PP
    item number
    93-0250-40-02-00-058
    more details
  • Measuring scoop of PP
    title
    Measuring scoop
    colour
    white
    material
    PP
    item number
    93-0500-40-02-00-058
    more details
  • PE-Inliner of LD-PE
    title
    PE-Inliner
    mouth
    600,0 mm
    colour
    transparent
    material
    LD-PE
    item number
    41-60-0600-1500-082
    more details
  • Safety quick fastener of PP
    title
    Safety quick fastener
    colour
    light blue
    material
    PP
    versions
    mit fortlaufender Barcodenummer zur lückenlosen Rückverfolgbarkeit
    item number
    94-0050-41-05-90-094
    more details
  • Closure help of steel
    title
    Closure help
    colour
    galvanized
    material
    steel
    versions
    coated PVS handle
    item number
    94-0150-70-16-00-116
    more details
