Technical Details
| item number | 21-0216-00-05-00-038 |

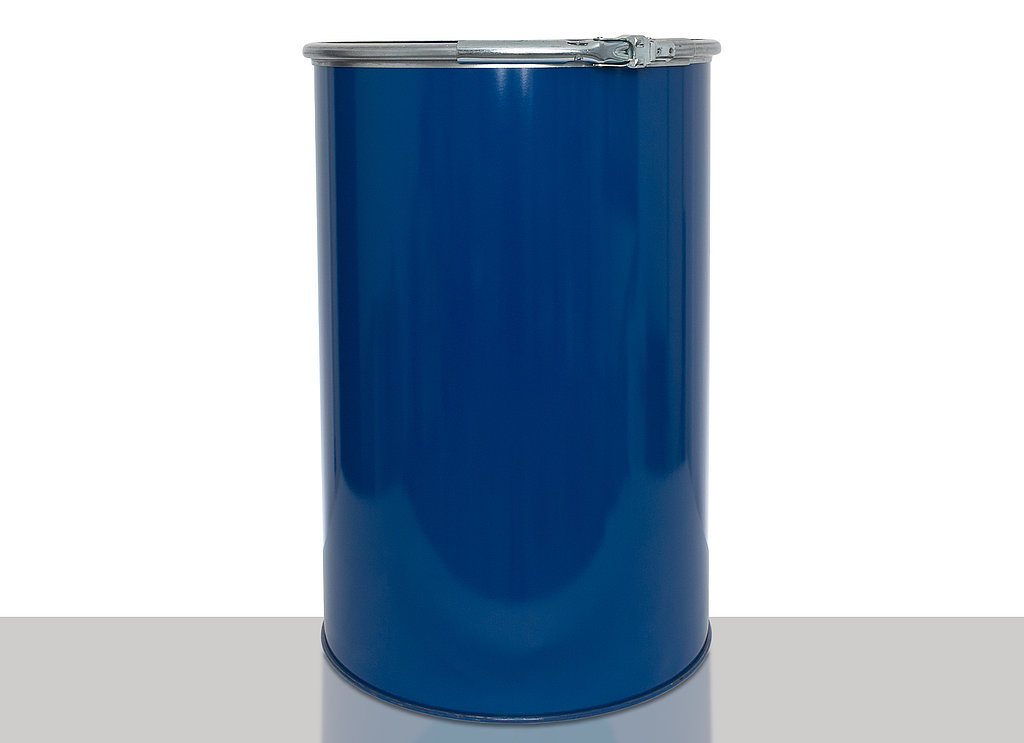

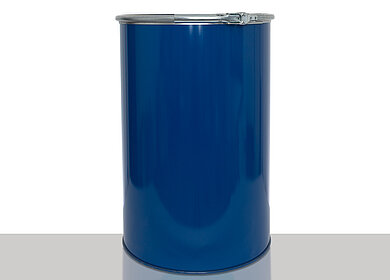

| title | Open head drum |
| nominal volume | 213,0 l |
| colour | blue RAL 5010 |
| material | sheet steel |
| weight | 20,00 kg |
| UN approval | 1A2/X420/S + 1A2/Y1.5/150 |
| height inside | 843,0 mm |
| height outside | 880,0 mm |
| Diameter bottom outside | 607,0 mm |
| Diameter top outside | 607,0 mm |
| Diameter top inside | 572,0 mm |
| Diameter bottom inside | 572,0 mm |
| mouth | 572,0 mm |
| hoops | smooth walled inside |
| plate thickness body | 1,0 mm |
| plate thickness lid | 1,0 mm |
| plate thickness bottom | 1,0 mm |
| stackable | yes |

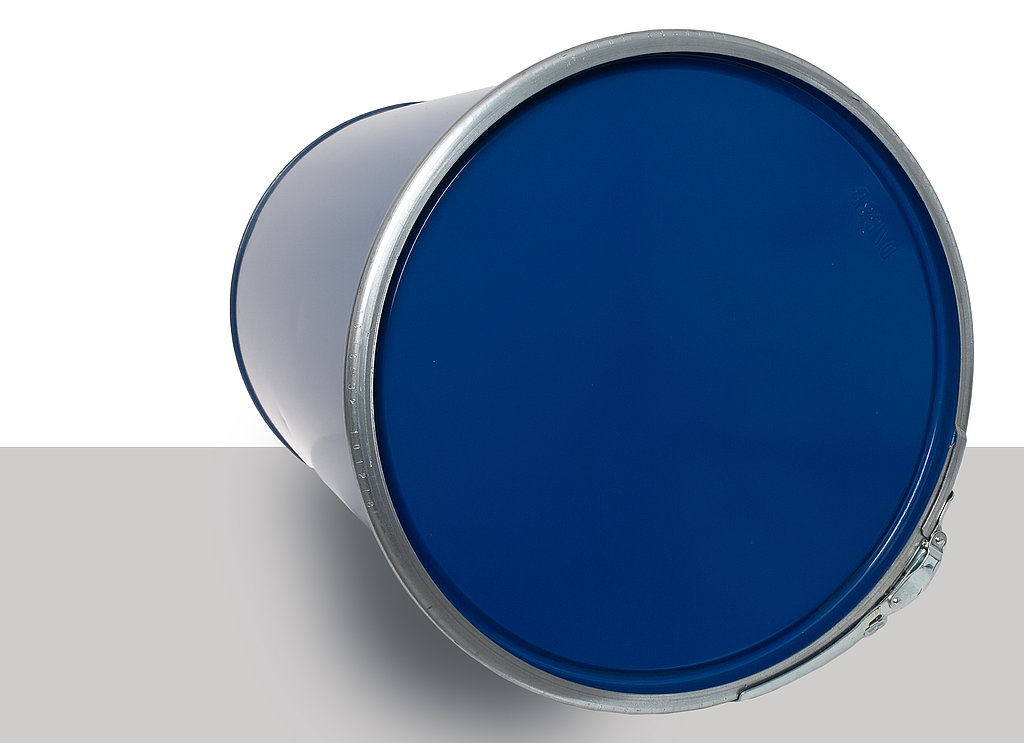

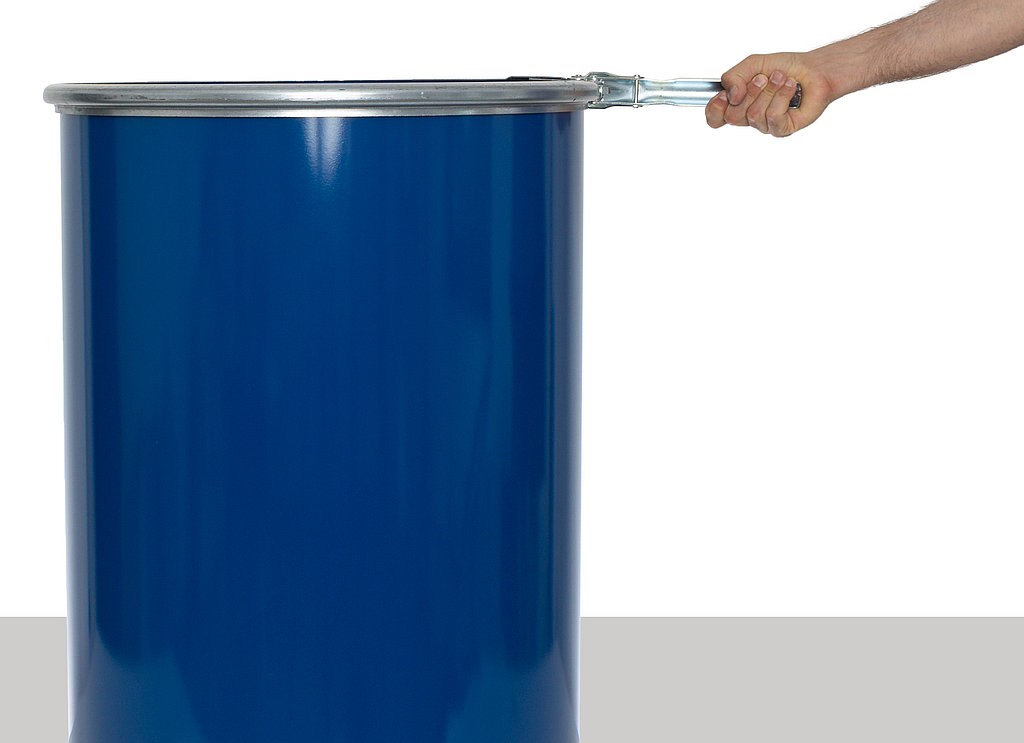

| lid | Lid with foam rubber seal and clamping ring |
| lid colour | blue |
| seal | glued in 11,5 mm foam rubber seal |
| bottom | blue |
| minimum order quantity | 4 item. |
| packaging unit | 4 item. |
| pallet unit | 4 item. |
| pallet type | euro-pallet |
| other | ø 571,5 mm inside ø 610 mm outside 880 mm height |
