Technical Details
| item number | 20-0216-20-05-01-020 |

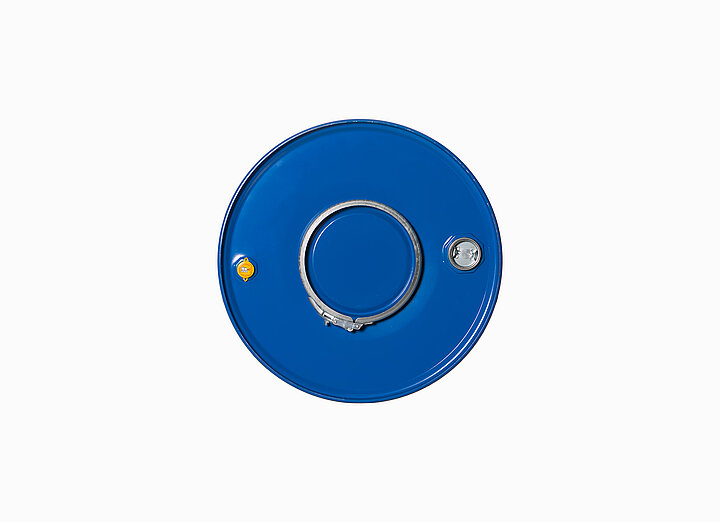

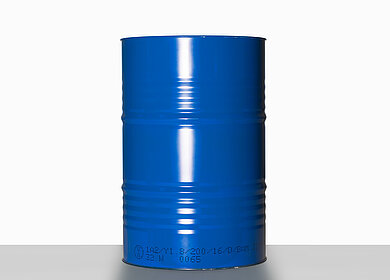

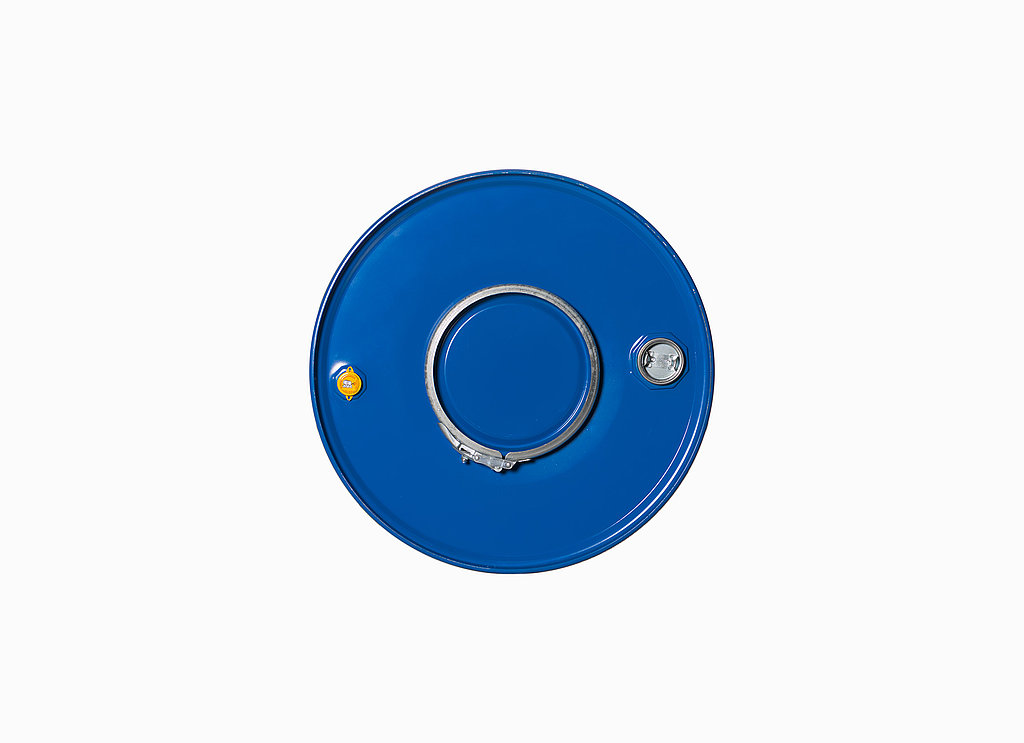

| title | Sheet steel tight head drum |
| nominal volume | 216,0 l |
| colour | blue RAL 5010 |
| material | sheet steel |
| weight | 17,30 kg |
| UN approval | UN 1A2/Y1.8/200/.../D/BAM |
| height outside | 884,0 mm |
| Diameter bottom outside | 585,0 mm |
| Diameter top outside | 585,0 mm |
| Diameter top inside | 572,0 mm |
| Diameter bottom inside | 572,0 mm |
| mouth | 230,0 mm |
| hoops | 2 heat and 6 reinforcement beads |
| plate thickness body | 0,9 mm |
| plate thickness lid | 1,0 mm |
| plate thickness bottom | 1,0 mm |
| stackable | yes |
| seal | EPDM (bung) |
| versions | additional DN 230 closure |
| minimum order quantity | 100 item. |
| other | DN 230 closure centered at base with foam rubber seal and clamping ring |
Accessories
-
![drum pump of PP]()
![]()
- title
- drum pump
- colour
- blue/black
- material
- PP
- versions
- hand lever pump
- seal
- nitrile sealing
- item number
- 94-0850-90-05-00-033
-
![faucet 3/4" Flo-Rite of HDPE]()
![]()
- title
- faucet 3/4" Flo-Rite
- mouth
- 19,0 mm
- colour
- brown
- material
- HDPE
- seal
- Perbuan
- item number
- 94-0600-90-10-00-040
-
![faucet "Gurana" fine thread of PP]()
![]()
- title
- faucet "Gurana" fine thread
- mouth
- 19,0 mm
- colour
- white
- material
- PP
- seal
- yes
- item number
- 94-0600-90-02-00-020
-
![sheet steel sealing cap 2" of sheet steel]()
![]()
- title
- sheet steel sealing cap 2"
- mouth
- 51,0 mm
- colour
- white
- material
- sheet steel
- seal
- none
- item number
- 94-0751-70-02-00-038
-
![sheet steel sealing cap 3/4" of sheet steel]()
![]()
- title
- sheet steel sealing cap 3/4"
- mouth
- 19,0 mm
- colour
- yellow
- material
- sheet steel
- versions
- goods removal emblem
- item number
- 94-0750-70-06-00-024
-
![barrel key of galvanised sheet steel]()
![]()
- title
- barrel key
- colour
- galvanised
- material
- galvanised sheet steel
- item number
- 94-0500-90-16-00-031
-
![capsule closure device "Clinch 2" of sheet steel]()
![]()
- title
- capsule closure device "Clinch 2"
- colour
- galvanised
- material
- sheet steel
- versions
- manual crimping tool
- seal
- none
- item number
- 94-0510-70-16-00-031
-
![capsule closure device "Clinch 3/4" of sheet steel]()
![]()
- title
- capsule closure device "Clinch 3/4"
- material
- sheet steel
- versions
- manual crimping tool for 3/4"
- item number
- 94-0511-70-16-00-031
-
![Drum pump of plastic]()
![]()
- title
- Drum pump
- mouth
- 50,0 mm
- colour
- golden
- material
- plastic
- versions
- includes telescopic tube for the universal use on all barrel sizes
- item number
- 94-0850-90-07-00-076
