Technical Details
| item number | 22-0216-10-05-10-039 |

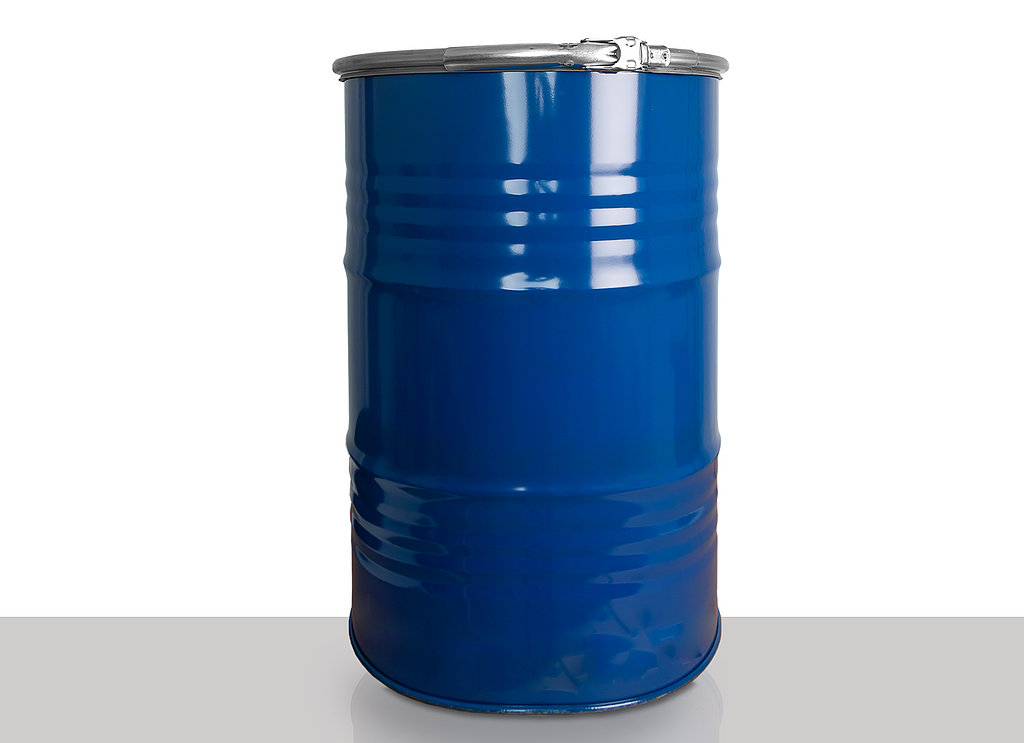

| title | Open head drum with inner lacquer |
| nominal volume | 216,0 l |
| overrun volume | 216,5 l |
| colour | blue RAL 5010 |
| material | sheet steel |
| weight | 20,15 kg |
| UN approval | UN 1A2/X417/S + 1A2/Y140 |
| height inside | 843,0 mm |
| height outside | 883,0 mm |
| Diameter bottom outside | 585,0 mm |
| Diameter top outside | 585,0 mm |
| Diameter top inside | 572,0 mm |
| Diameter bottom inside | 572,0 mm |
| mouth | 571,0 mm |
| filler hole | 571,0 mm |
| hoops | reinforcement beads |
| plate thickness body | 1,0 mm |
| plate thickness lid | 1,0 mm |
| plate thickness bottom | 1,0 mm |
| stackable | yes |
| food safe | yes |
| interior coating | R78433 |

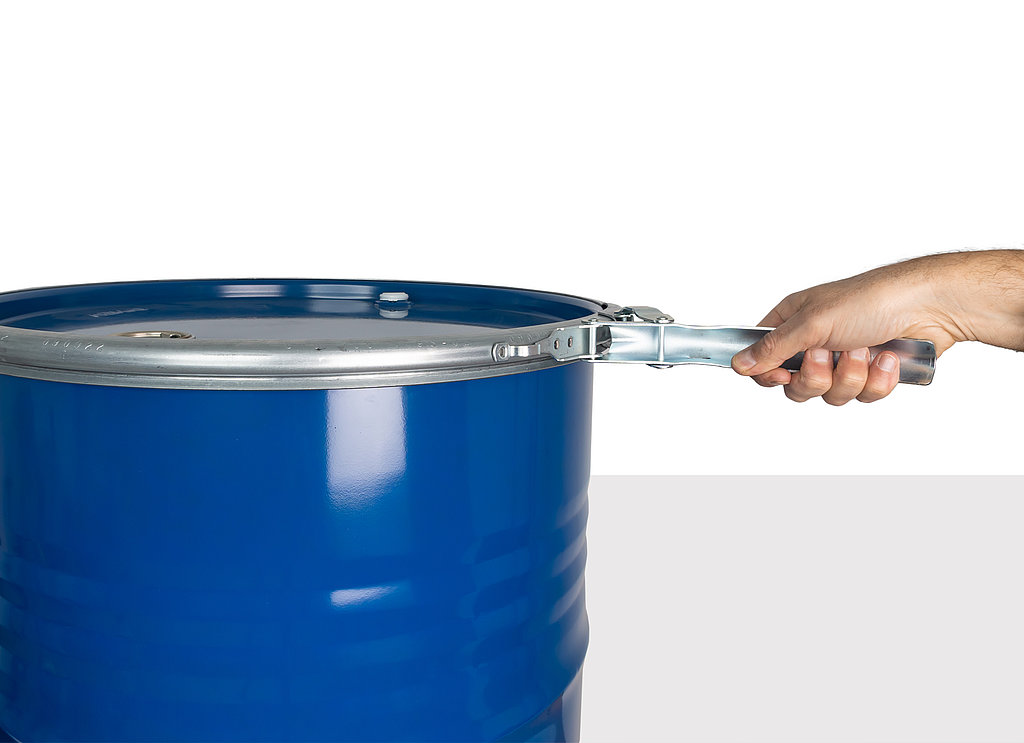

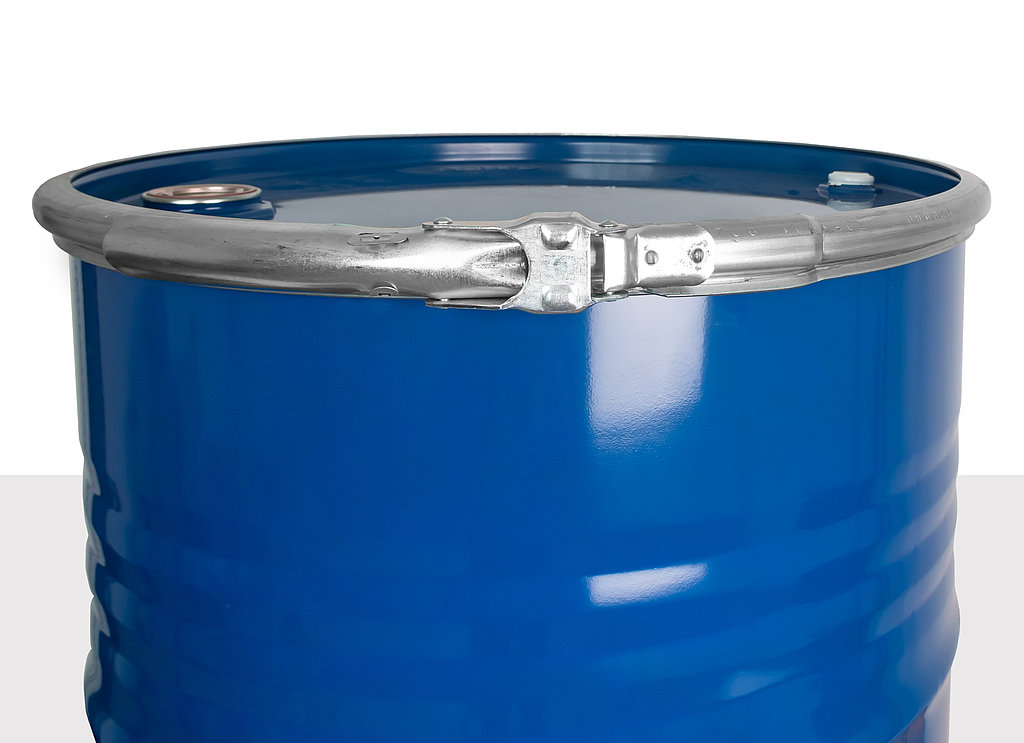

| lid | with PU-seal and clamping ring |
| lid colour | blue |
| bottom | blue |

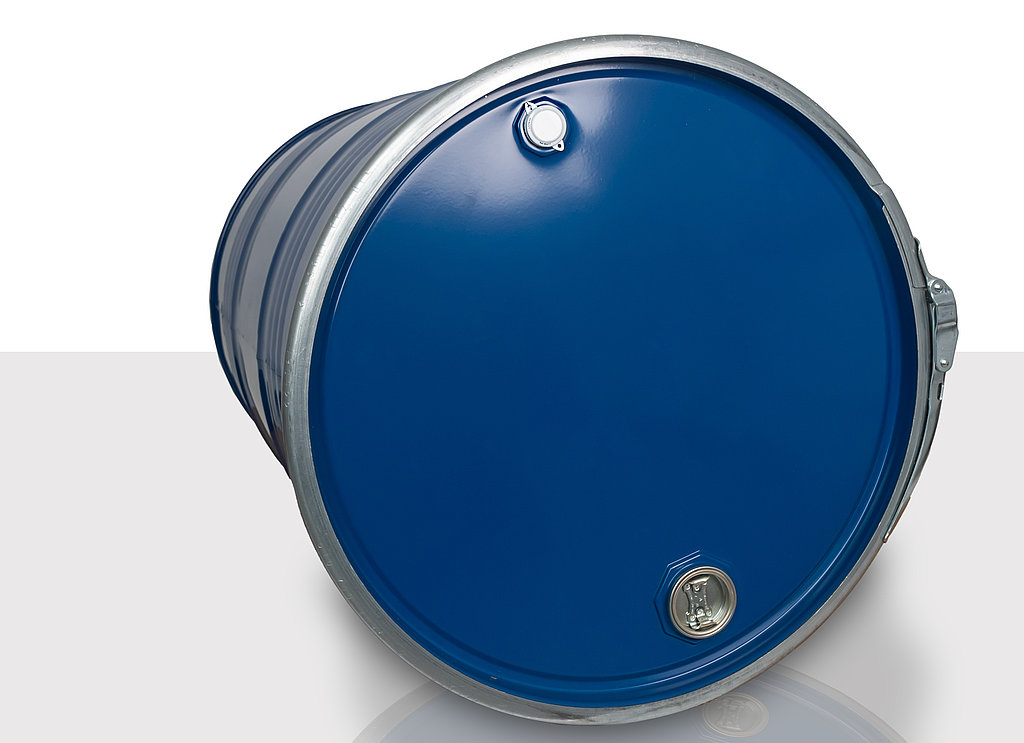

| closures | 2" and 3/4" Tri-Sure galvanized |
| minimum order quantity | 4 item. |
| pallet unit | 4 item. |
| pallet type | euro-pallet |
Accessories
-
![barrel key of galvanised sheet steel]()
![]()
- title
- barrel key
- colour
- galvanised
- material
- galvanised sheet steel
- UN approval
- none
- item number
- 94-0500-90-16-00-031
- Preis
-
![capsule closure device "Clinch 2" of sheet steel]()
![]()
- title
- capsule closure device "Clinch 2"
- colour
- galvanised
- material
- sheet steel
- UN approval
- none
- item number
- 94-0510-70-16-00-031
- Preis
-
![capsule closure device "Clinch 3/4" of sheet steel]()
![]()
- title
- capsule closure device "Clinch 3/4"
- material
- sheet steel
- UN approval
- none
- item number
- 94-0511-70-16-00-031
- Preis
-
![drum pump of PP]()
![]()
- title
- drum pump
- colour
- blue/black
- material
- PP
- UN approval
- none
- item number
- 94-0850-90-05-00-033
- Preis
-
![Closure help of steel]()
![]()
- title
- Closure help
- colour
- galvanized
- material
- steel
- UN approval
- none
- item number
- 94-0150-70-16-00-116
- Preis
-
![faucet 3/4" Flo-Rite of HDPE]()
![]()
- title
- faucet 3/4" Flo-Rite
- colour
- brown
- material
- HDPE
- mouth
- 19,0 mm
- UN approval
- none
- item number
- 94-0600-90-10-00-040
- Preis
-
![faucet "Gurana" fine thread of PP]()
![]()
- title
- faucet "Gurana" fine thread
- colour
- white
- material
- PP
- mouth
- 19,0 mm
- UN approval
- none
- item number
- 94-0600-90-02-00-020
- Preis
-
![drum seal of PE]()
![]()
- title
- drum seal
- colour
- red
- material
- PE
- UN approval
- none
- item number
- 94-0650-90-04-00-077
- Preis
-
![splint of galvanized sheet steel]()
![]()
- title
- splint
- colour
- silver
- material
- galvanized sheet steel
- UN approval
- none
- item number
- 94-0650-90-16-00-070
- Preis
-
![sheet steel sealing cap 2" of sheet steel]()
![]()
- title
- sheet steel sealing cap 2"
- colour
- white
- material
- sheet steel
- mouth
- 51,0 mm
- UN approval
- none
- item number
- 94-0751-70-02-00-038
- Preis
-
![sheet steel sealing cap 3/4" of sheet steel]()
![]()
- title
- sheet steel sealing cap 3/4"
- colour
- weiß
- material
- sheet steel
- mouth
- 19,0 mm
- UN approval
- none
- item number
- 94-0750-70-02-00-038
- Preis
-
![sheet steel sealing cap 3/4" of sheet steel]()
![]()
- title
- sheet steel sealing cap 3/4"
- colour
- yellow
- material
- sheet steel
- mouth
- 19,0 mm
- UN approval
- none
- item number
- 94-0750-70-06-00-024
- Preis
-
![faucet 2" Flo-King of PE]()
![]()
- title
- faucet 2" Flo-King
- colour
- brown
- material
- PE
- mouth
- 51,0 mm
- UN approval
- none
- item number
- 94-0600-50-10-00-068
- Preis
-
![Measuring scoop of PP]()
![]()
- title
- Measuring scoop
- nominal volume
- 250 ml
- colour
- white
- material
- PP
- UN approval
- none
- item number
- 93-0250-40-02-00-058
- Preis
-
![Measuring scoop of PP]()
![]()
- title
- Measuring scoop
- nominal volume
- 500 ml
- colour
- white
- material
- PP
- UN approval
- none
- item number
- 93-0500-40-02-00-058
- Preis
