Technical Details
| item number | 26-0100-22-25-00-117 |

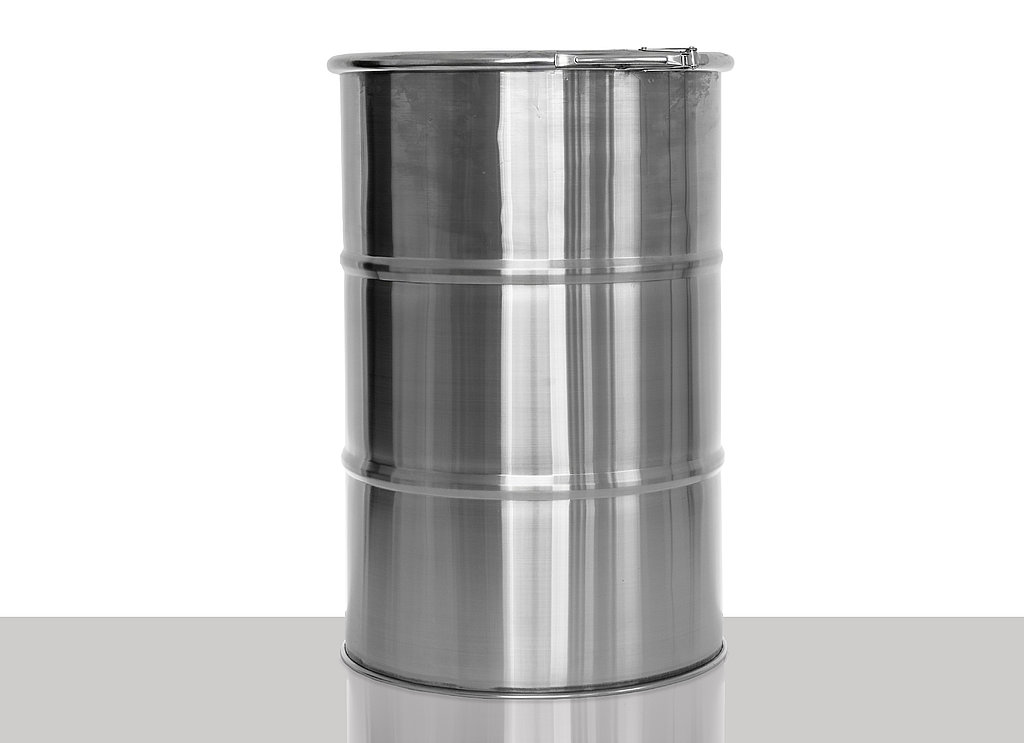

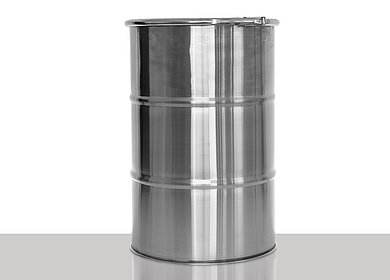

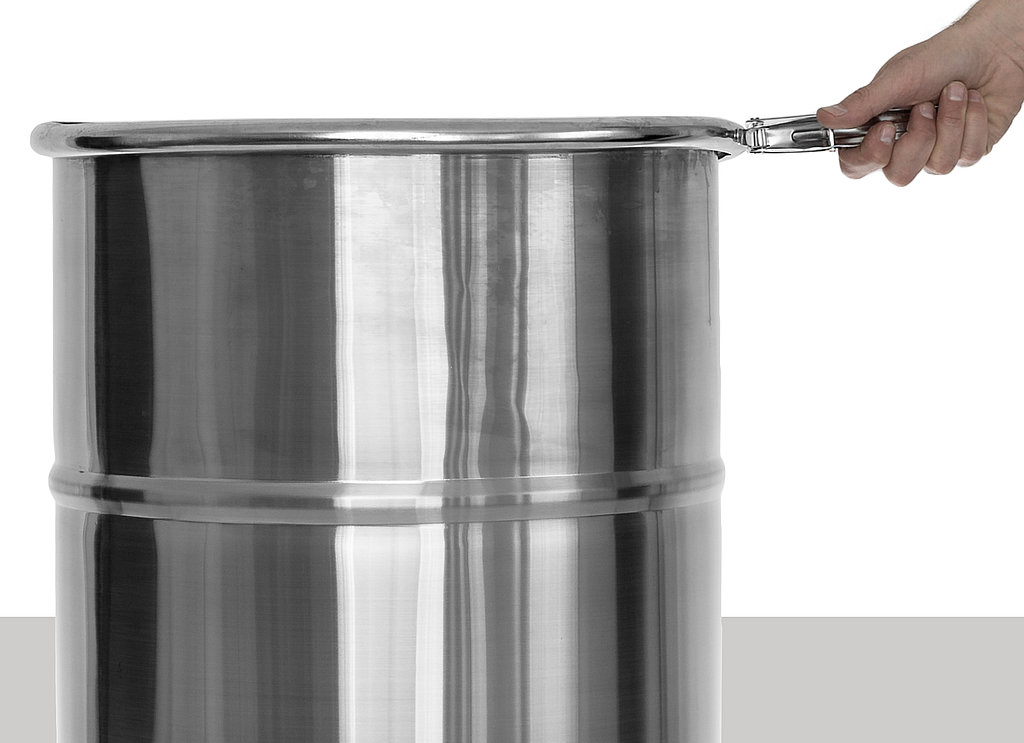

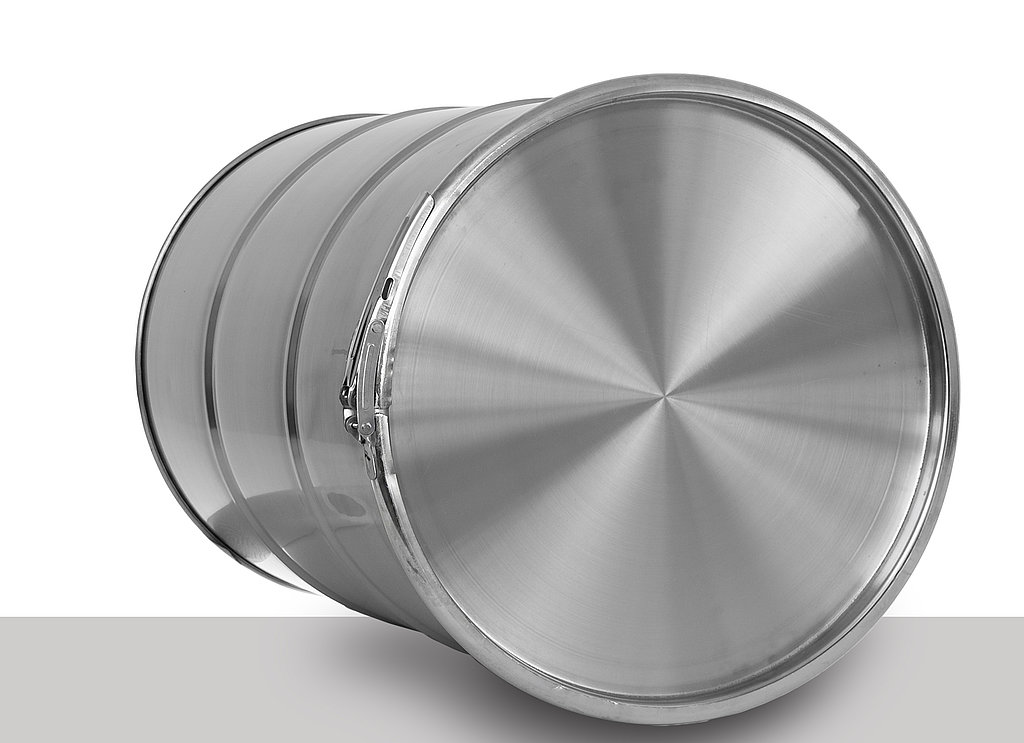

| title | Stainless steel open head drum |
| nominal volume | 100,0 l |
| overrun volume | 105,0 l |
| colour | matte stainless steel |
| material | stainless steel |
| weight | 12,76 kg |
| UN approval | none |
| height outside | 680,0 mm |
| Diameter bottom outside | 499,0 mm |
| Diameter top outside | 499,0 mm |
| mouth | 499,0 mm |
| filler hole | 450,0 mm |
| plate thickness body | 1,0 mm |
| plate thickness lid | 1,0 mm |
| plate thickness bottom | 1,0 mm |
| stackable | yes |
| food safe | yes |
| bottom | grooved and resistance welded |
| thickness | 1,0 mm continuous |
| quality | 2 beads |
| versions | 2" and 3/4" stainless steel screw connections with PE-seals |
| pallet unit | 15 item. |
| other | Body seam plasma-welded, drainable. Sealant-free seaming and an additional circumferential weld on the base enable chemical resistance to aggressive filling goods and filling temperatures of up to 200°C |
Further Info
Stainless steel is a rust-free and durable steel that is characterized, among other things, by its excellent resistance to a wide range of chemicals. Our stainless steel tanks are made from grade SS316 and are ideally suited for industrial plant construction due to their durability.
